Description
AMP20
The premium AMP20 combines very high power output and high channel count to create a master reference-level amplifier, essential for ultimate home theatre performance. When paired with AV20, the results are simply unforgettable.

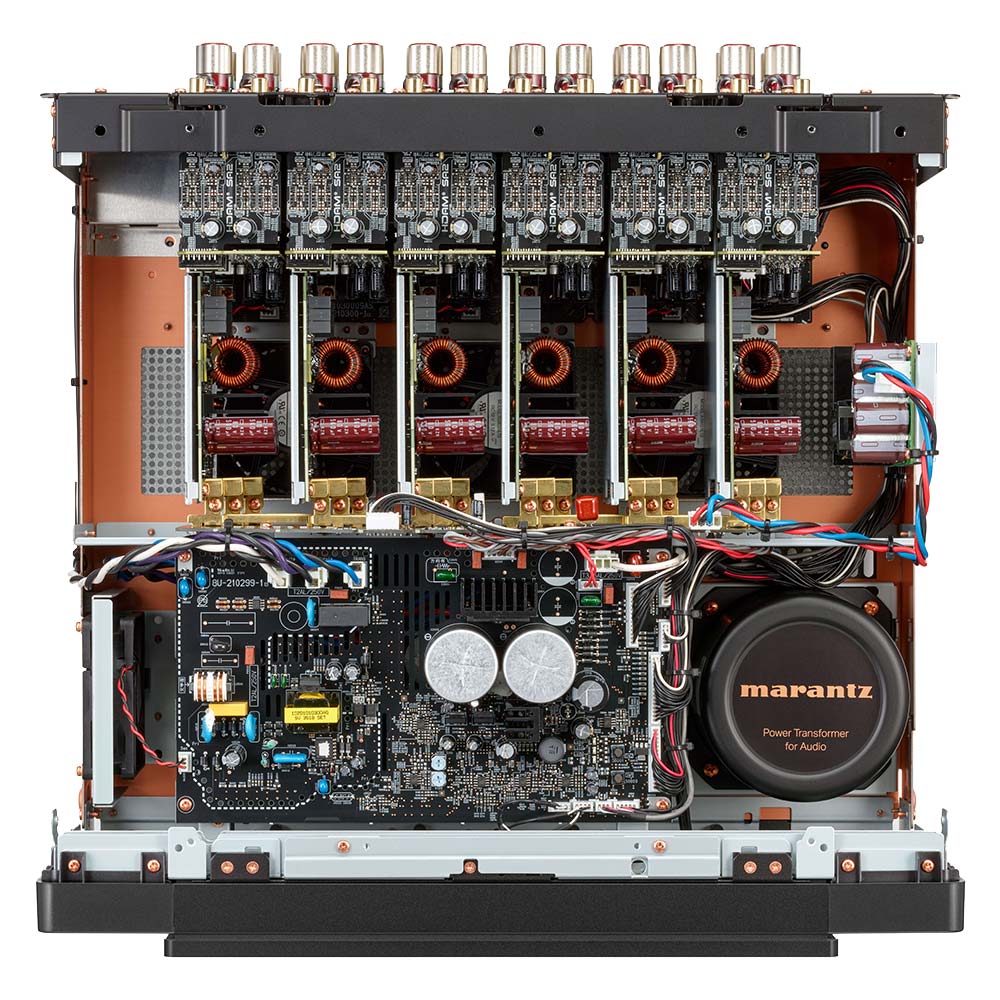

AMP20 features custom-developed Class D amplification and refined HDAM-SA2 technology, creating the most incredible theatrical experience possible in your own home.
Marantz Sound Master tuned for amazing performance, with careful parts selection to create outstanding results. Plus a massive 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels, with no loss in fidelity.
Features
- Detailed and immersive sound transforms your home cinema.
- 200 watts-per-channel into 8 Ohms / 400 watts-per-channel into 4 Ohms.
- 12 channels of power, for large home theatres.
- Bi-amp mode drives high- and low-frequency sections of loudspeakers independently.
- BTL Mode (Bridge mode) combines two channels into a single 400-watt per channel into 8 Ω.
- Perfect match for Marantz AV20 preamplifier.
- Balanced XLR input is ideal for reducing input noise.

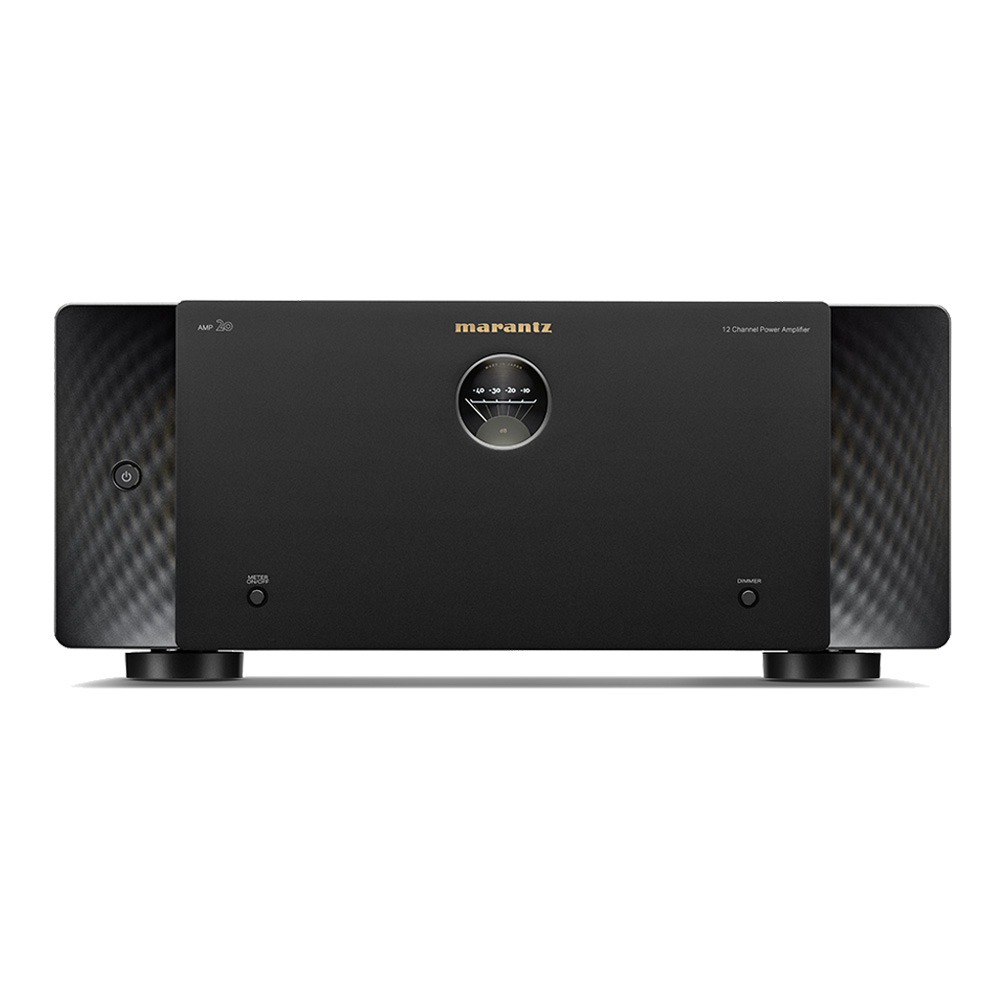

- Porthole with analog meter measures output.
- Soft side lights cast a warm glow on the front surface of the amplifier.
- Elegant design matches rich, warm sound.
Specifications

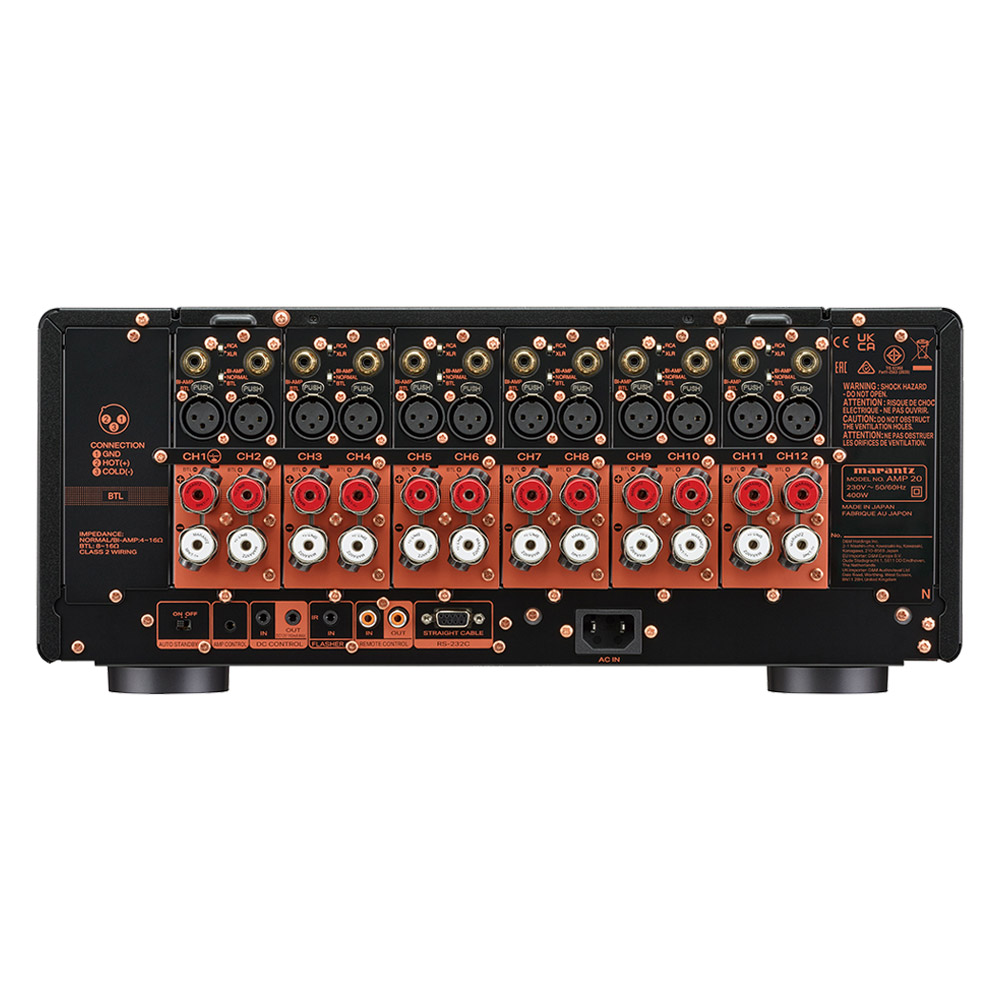

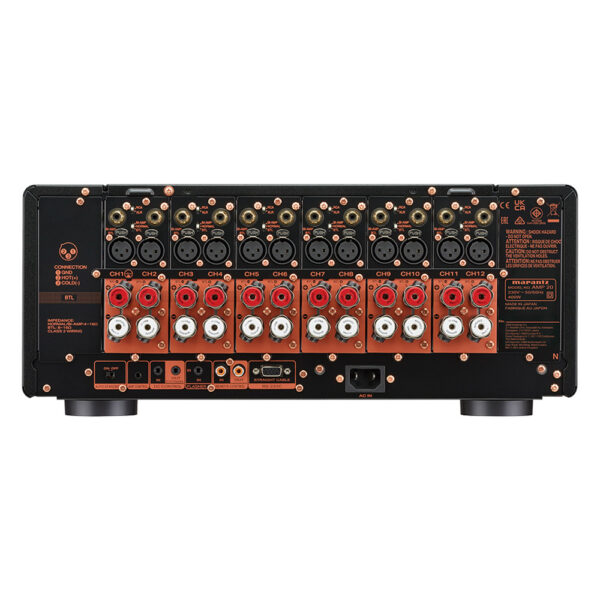

- Main Amplifier in (Balanced + Unbalanced): 12ch (Exclusive use by a selector switch)
- Speaker Terminal: SPKT-1+
- Number of Speaker Terminals: 12
- Bi-Amp Drive / BTL Drive: Yes / Yes
- Level Meter: Yes
- Chassis: Copper Plated
- RS232 Control: Yes
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Input/ Output: 1 / 1
- Number of Power Amps: 12
- Power Output (8 ohm, 1 kHz, 0.05 % 2ch Drive) Normal / BTL: 200 W / 400 W
- Power Output (4 ohm, 1 kHz, 0.7 % 2ch Drive) Normal: 400 W
- Power Output (8 ohm, 1 kHz, 0.7 % 5ch Drive) Normal: 200 W
- Front Display: Level Meter
- Auto Power Off: Yes
- Metal Front Panel: Yes
- Power Consumption: 400 W
- Power Consumption, No-Sound: 110 W
- Standby Consumption: 0.2 W
- Maximum Dimensions (W × D × H): 17.4 × 17.4 × 7.5 in.
- Weight: 39.7 lbs
Included
- AMP20 Main Unit
- Quick Start Guide
- AC Power Cord
- Amp Control Cable
- Remote Control Cable
- SP Terminal Wrench
Full Marantz Range Available
Unilet Sound & Vision are official retail partners for Marantz, providing sales, advice and assistance on their entire range of high-quality products. Please do get in touch if you would like a demonstration or wish to purchase.
