AMP30
The Marantz AMP30 is a remarkably powerful, slimline 6-channel amplifier that can be paired with an AV preamplifier for an outstanding home theatre system.
AMP30 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz’s exclusive HDAM and high-efficiency low-distortion Class D amplification.
Combine with additional AMP30, AMP20 or AMP10 power amplifiers to drive more complex speaker configurations.
The AMP30 offers flexible system-building, pairing effortlessly with the AV30 preamplifier, Marantz AV receivers, or additional AMP models to support larger, more immersive speaker configurations. It is the ideal foundation for expanding your home cinema with consistent power and signature Marantz performance.

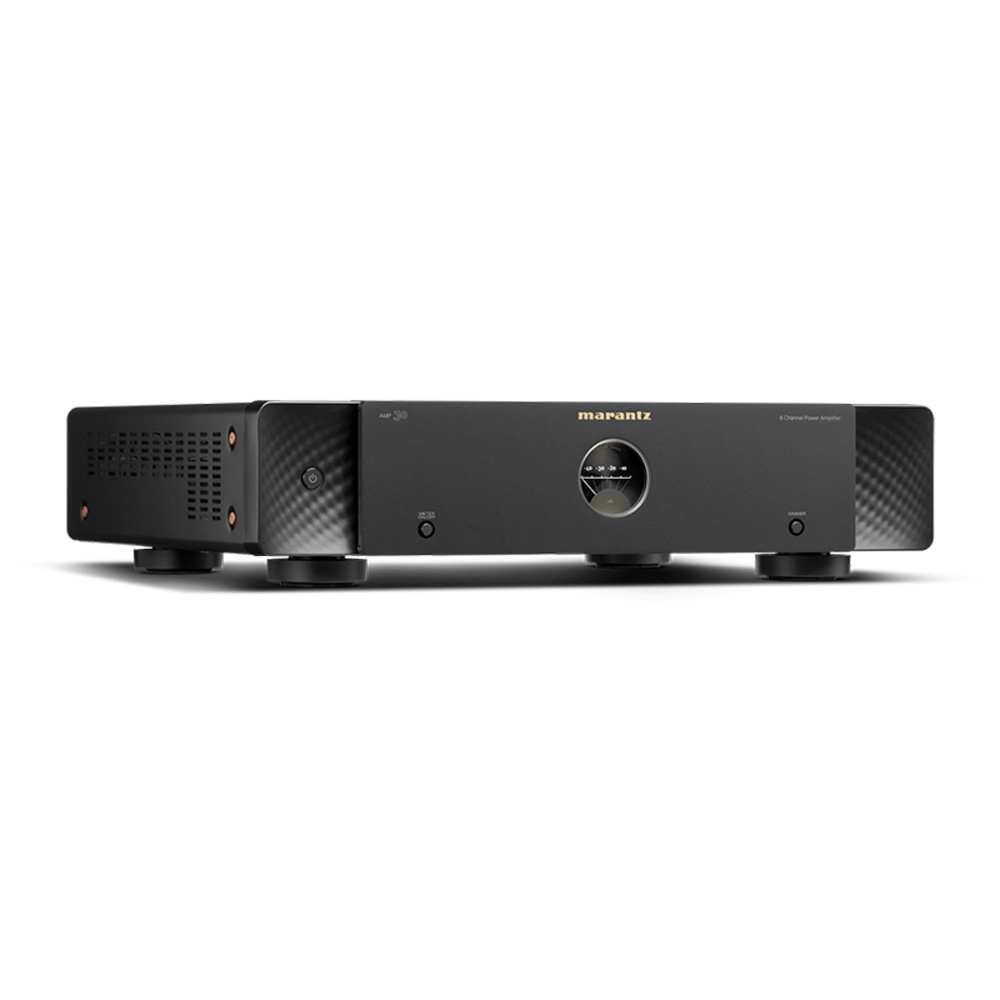

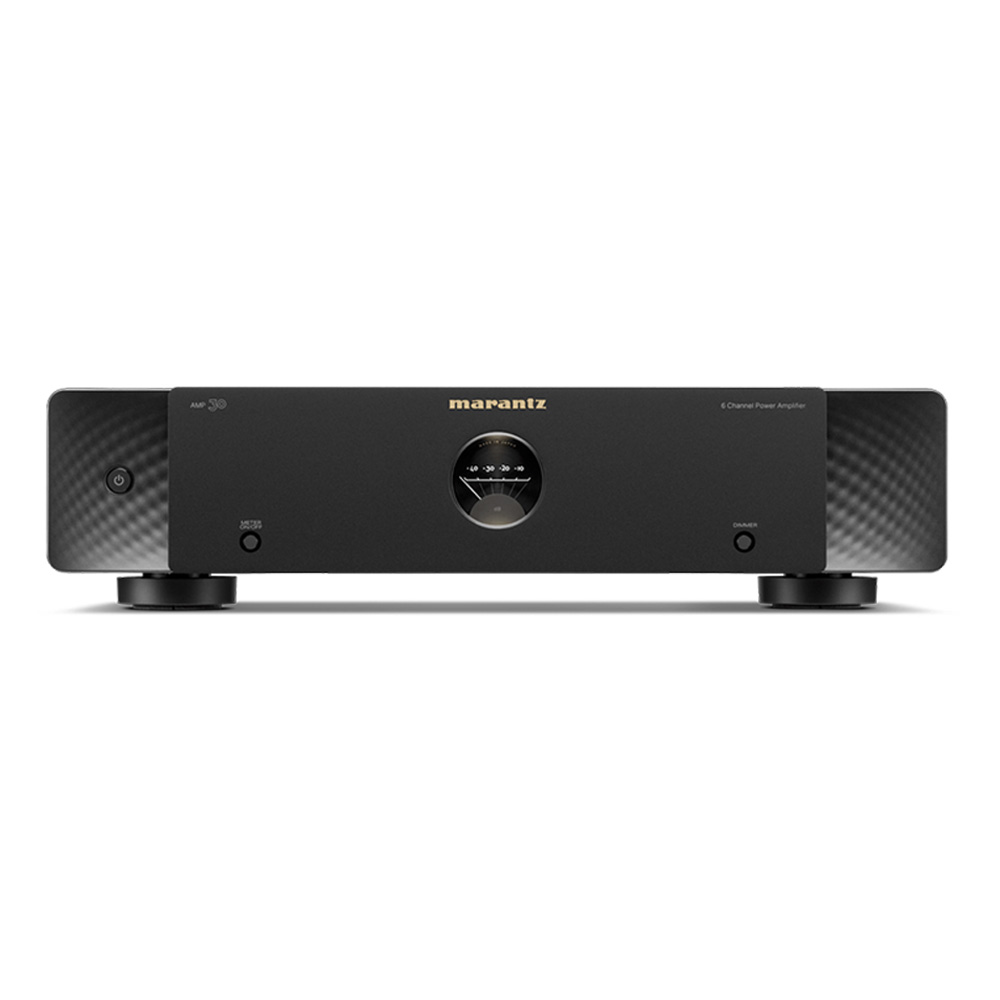

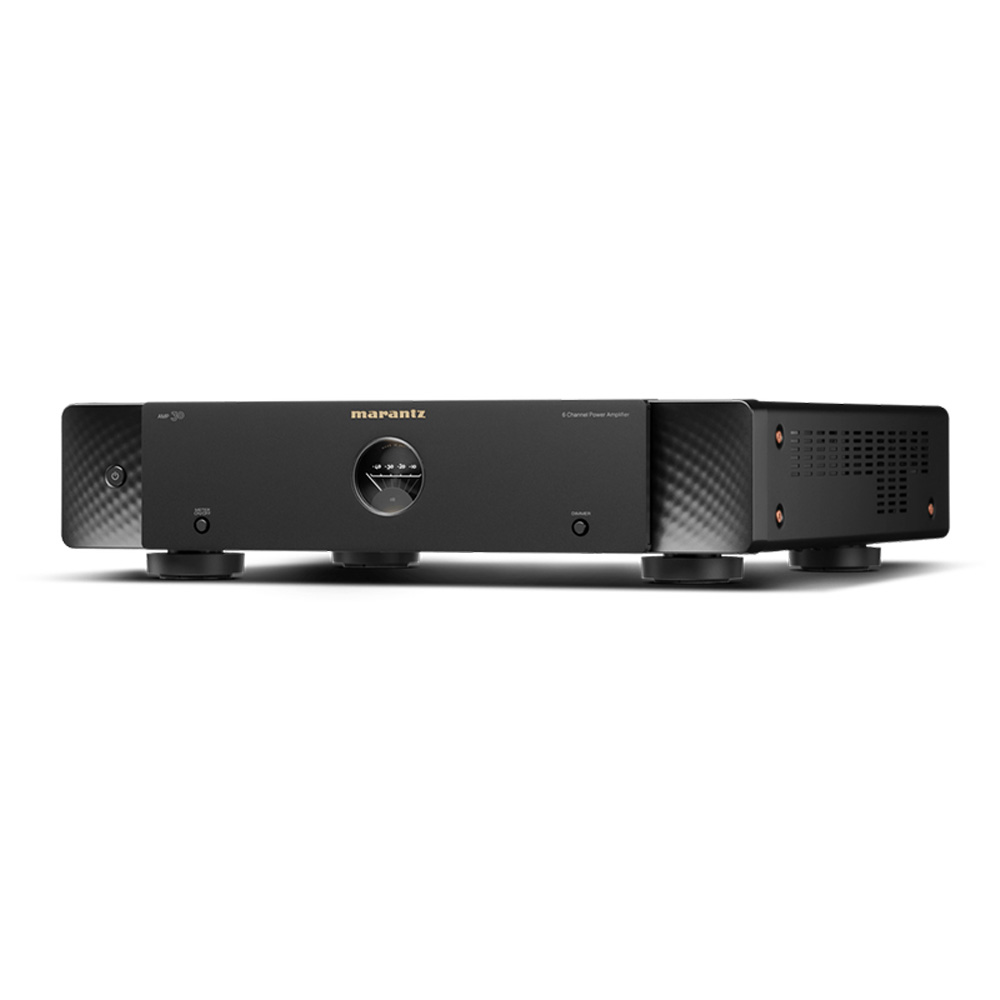

AMP30 6-Channel Slimline Power Amplifier, in Black finish, by Marantz
Features
- Reference 6-Channel, slimline amplifier.
- 200 watts per channel into 8Ω / 400 watts per channel into 4Ω.
- Bi-amp mode drives high- and low-frequency sections of loudspeakers independently.
- BTL Mode: Three channels of 400W or six channels of 200W.
- Perfect match for the Marantz AV30 preamplifier.
- Balanced XLR input is ideal for reducing input noise.
- Porthole with analog meter displays output.
- Soft side lights cast a warm glow on the amplifier front panel.
- Elegant slimline design matches rich, warm sound.
Specifications

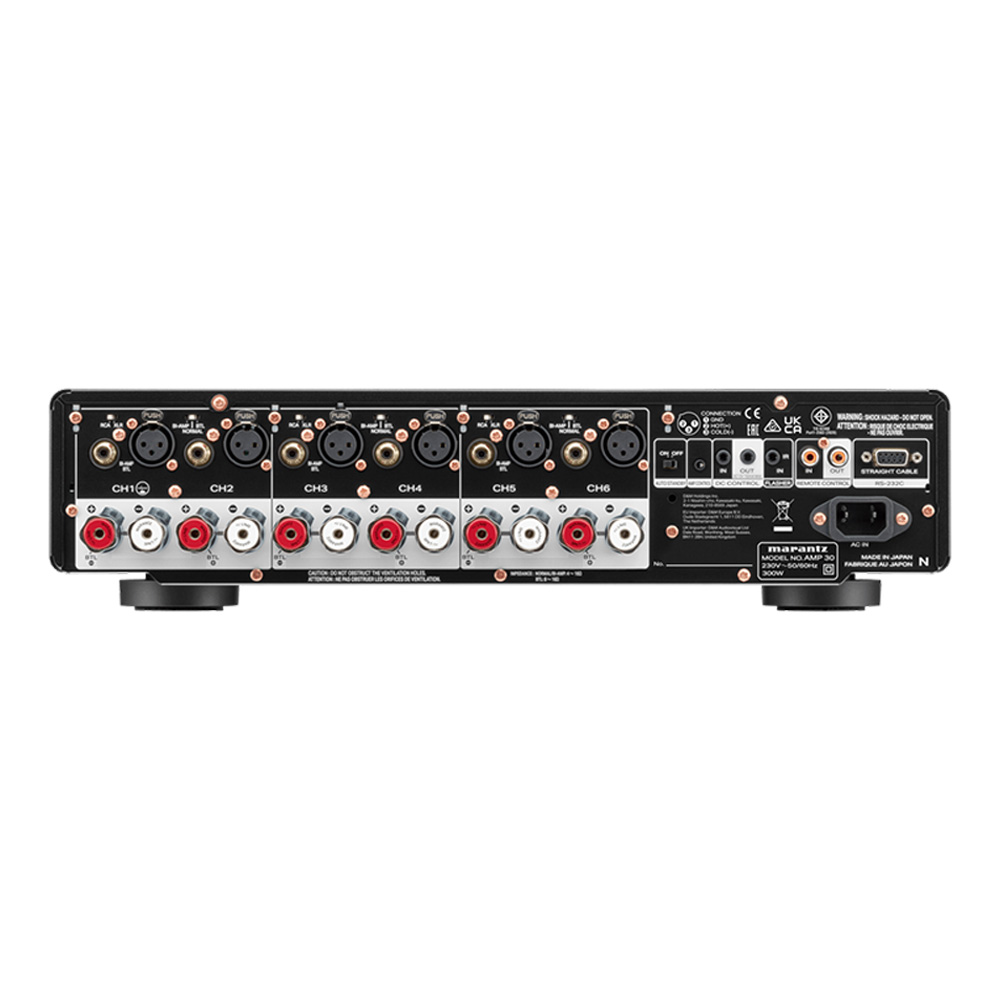

- Main Amplifier in (Balanced + Unbalanced): 6ch (Exclusive use by a selector switch)
- Speaker Terminal: SPKT-1+
- Number of Speaker Terminals: 6
- Bi-Amp Drive / BTL Drive: Yes / Yes
- Level Meter: Yes
- RS232 Control: Yes
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Input/ Output: 1 / 1
- Number of Power Amps: 6
- Power Output (8 ohm, 1 kHz, 0.05 % 2ch Drive) Normal / BTL: 200 W / 400 W
- Power Output (4 ohm, 1 kHz, 0.7 % 2ch Drive) Normal: 400 W
- Power Output (8 ohm, 1 kHz, 0.7 % 5ch Drive) Normal: 200 W
- Front Display: Level Meter
- Auto Power Off: Yes
- Metal Front Panel: Yes
- Power Consumption: 300 W
- Power Consumption, No-Sound (ECO On/Off): 70 W
- Standby Consumption: 0.2 W
- Maximum Dimensions (W × D × H): 17.4 × 17.4 × 7.5 in.
- Weight: 22.0 lbs
Included
- AMP30 Power Amplifier
- Quick Start Guide
- AC Power Cord
- Amp Control Cable
- Remote Control Cable
