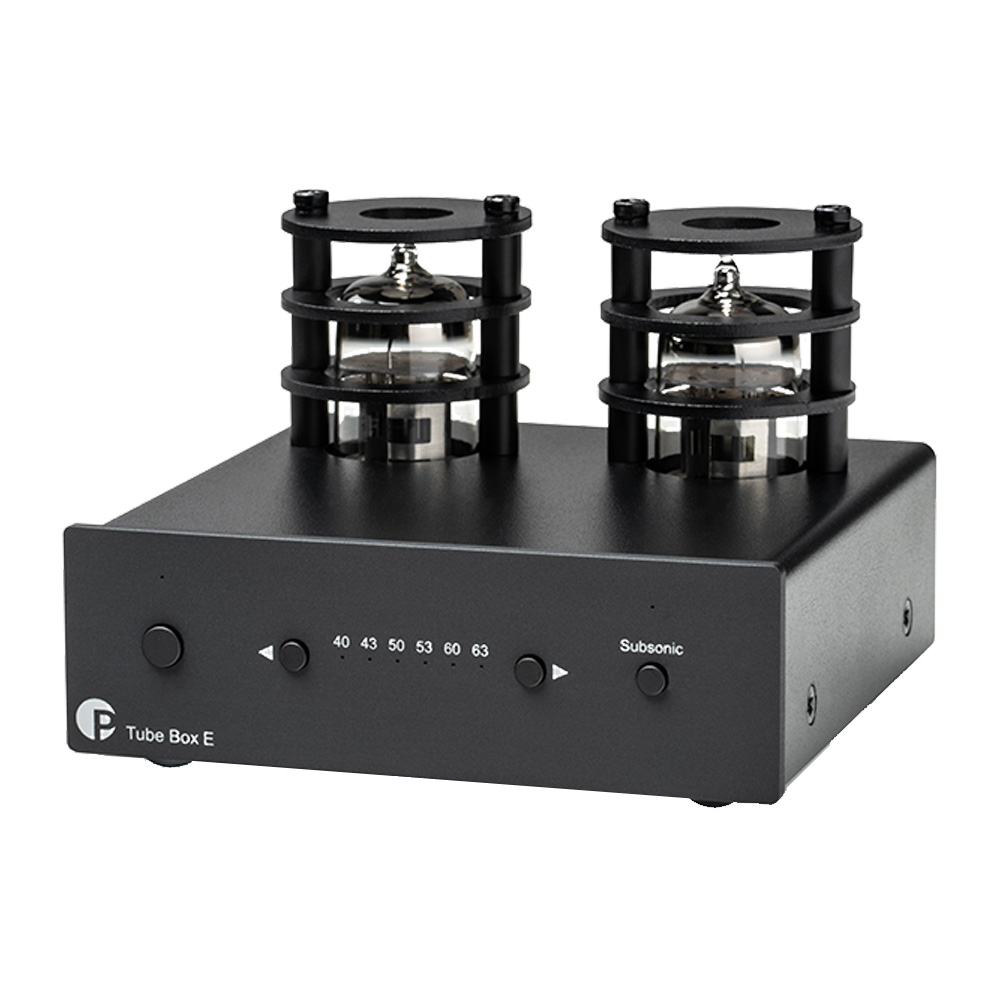

Tube Box E
The Pro-Ject Tube Box E brings classic tube warmth to your turntable setup in a sleek, miniature form. The all-metal enclosure shields against unwanted interference, while the finely-machined aluminium front panel adds a touch of sophistication.

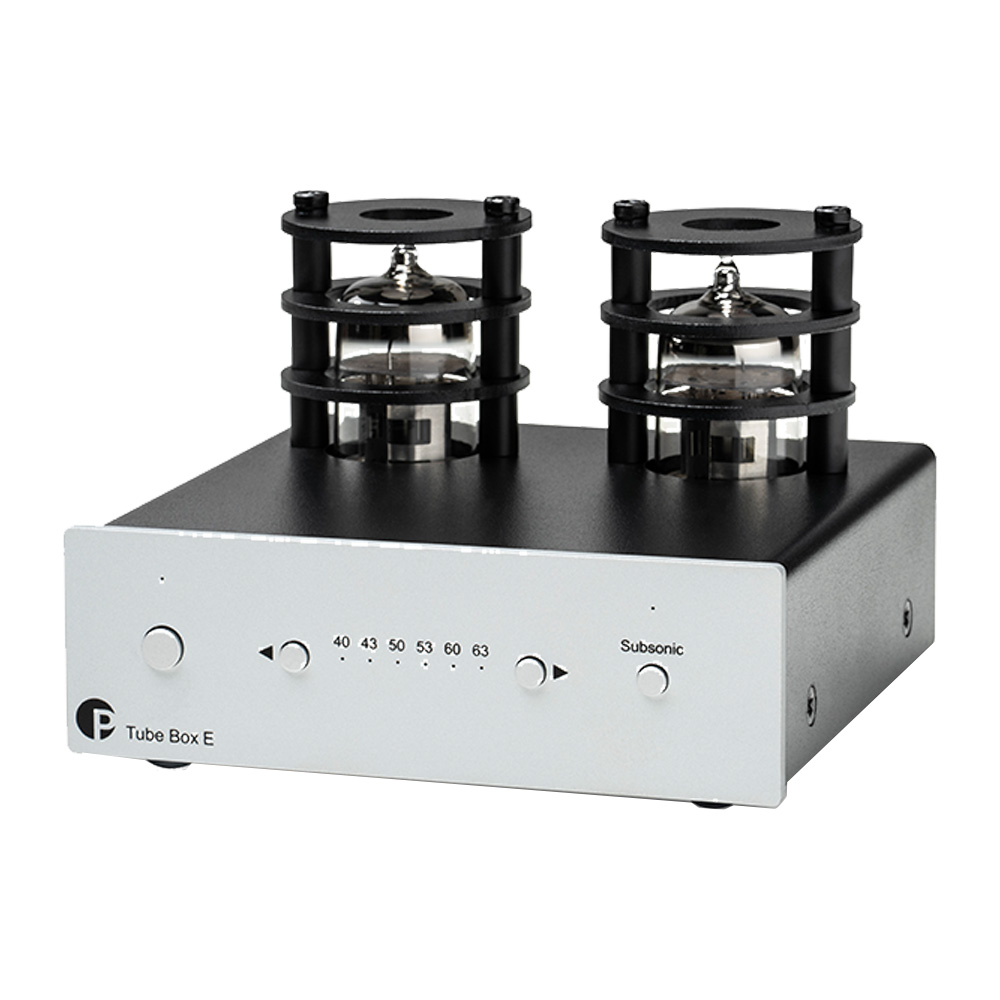

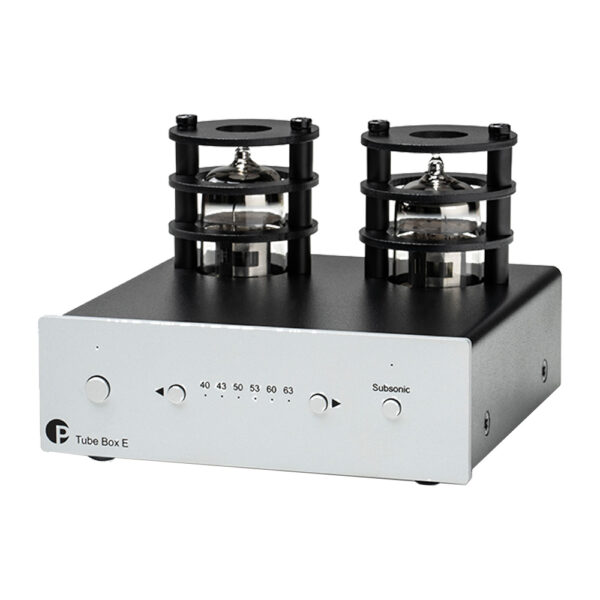

Available in silver or black, Tube Box E blends seamlessly into any hi-fi system.
Pure Analogue Performance
Inside, a fully discrete circuit design avoids operational amplifiers (OpAmps), resulting in ultra-low noise and accurate RIAA equalisation.
This means your records sound clearer and more natural, with lush mids and a relaxed tonal character. Dual mono circuitry enhances channel separation, delivering a more immersive stereo image.
Flexible Features
Supporting both MM and MC cartridges, the Tube Box E offers front panel gain control and a subsonic filter to reduce rumble.
Loading options are easily adjustable underneath, allowing precise matching to your cartridge. Replaceable ECC83 tubes invite sound-shaping through tube rolling, giving you control over your audio signature.
Features
- Precise passive / active RIAA equalisation.
- Fully discreet circuit design without OpAmps.
- Ultra low noise circuitry with FET input stage.
- Well-filtrated high-voltage anode power supply.
- MM / MC Compatibility.
- Dual-mono electrical design.
- Solid metal casing protects from interferences.
Specifications
- Input Impedance (MM): 47 kΩ
- Input Impedance (MC): Variable 10 – 2,000 Ω
- Phono Stage Capacitance (MM); 47, 147, 267, 367, 487 or 587 pF
- Phono Stage Gain (MM): 40, 43, 50, 53 dB
- Phono Stage Gain (MC): 50, 53, 60, 63 dB
- Phono Stage Equalization Options: RIAA
- Subsonic Filter: at 20 Hz with 18 dB/octave
- RIAA Accuracy (20 Hz – 20 kHz): +/- 0.5 dB
- Valves: 2 x ECC83
- THD (MM Input): <0,03 %
- THD (MC Input): <0,07 %
- Noise Floor (MM): 77 dBA
- Noise Floor (MC): 65 dBA

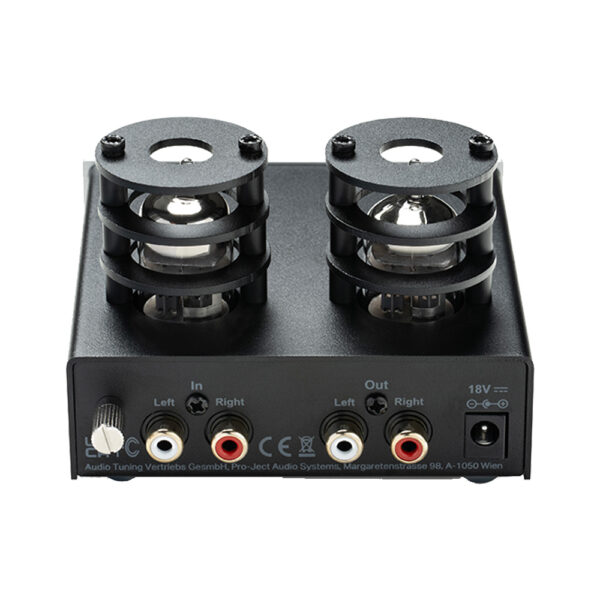

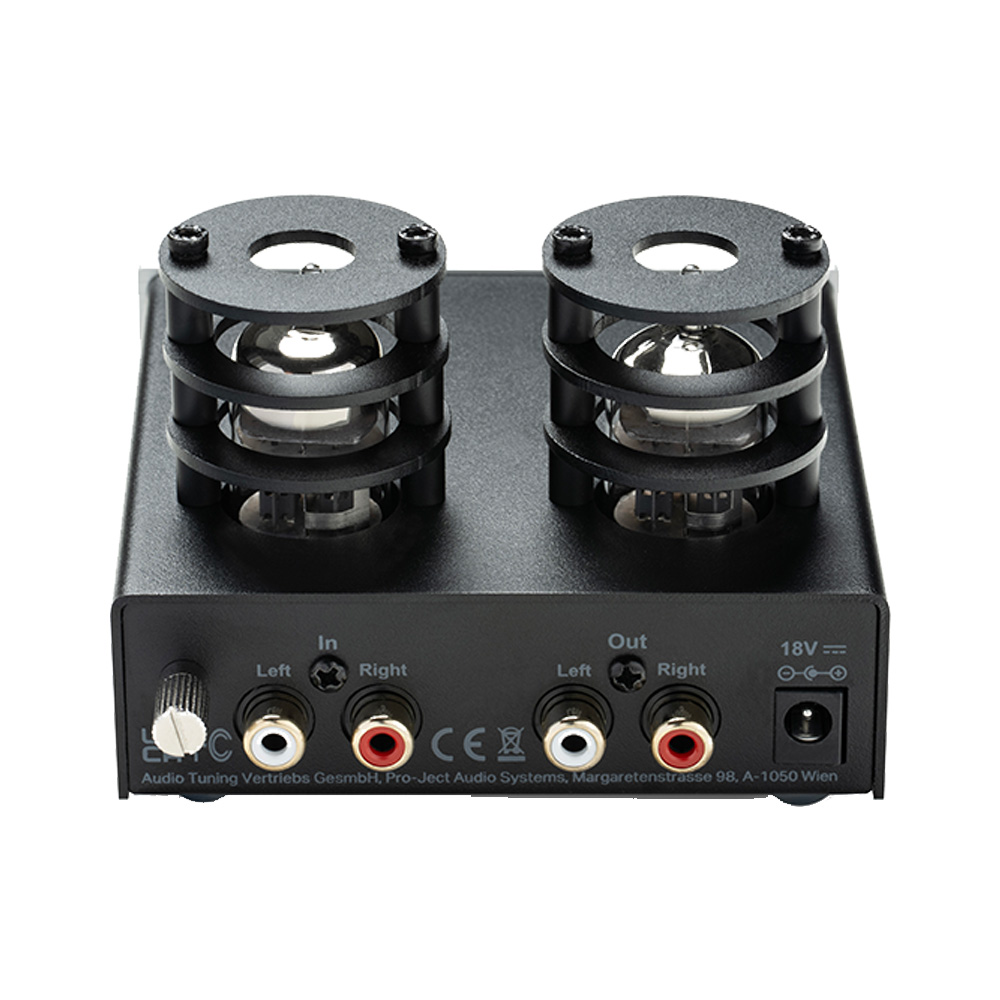

- RCA Input(s): 1 x RCA Pair
- Fixed Analogue Output(s): 1 x RCA Pair
- External Power Supply Rating: 18 V – 1 A DC
- Maximum Power Consumption: <1 W
- Dimensions (W x H x D): 103 x 73 x 115 mm
- Additional Dimensions (W x H x D): 103 x 73 x 131 mm (with sockets)
- Weight: 4.5 kg (without PSU)
Included
- 1 x Tube Box E
- 1 x External Power Supply
