Description
M6x TT
The M6x TT establishes the design philosophies of the legendary M1 turntable in the M6 line. The M1 design was created by Musical Fidelity founder Antony Michaelson and Heinz Lichtenegger – back then Musical Fidelity distributor and now brand owner.
The design was very important and should match the mechanically stunning amplifiers. The base idea was to combine the inert mass of metal alloys with zero resonating acrylic. The motor was effectively decoupled from the tonearm and platter with the dual chassis construction.
It was a great success and after the M8xTT, now the M6x TT is second in line to bring a more affordable version of this design philosophy to the market.
Tonearm

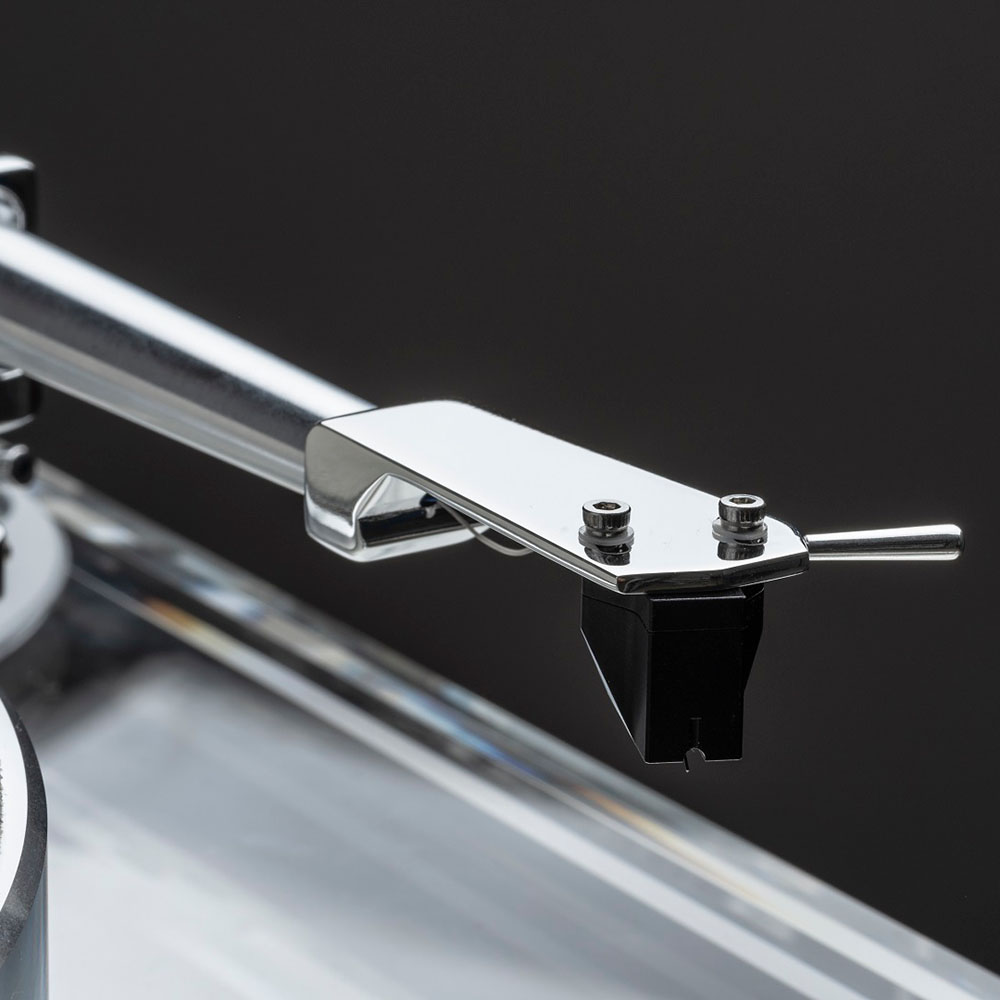

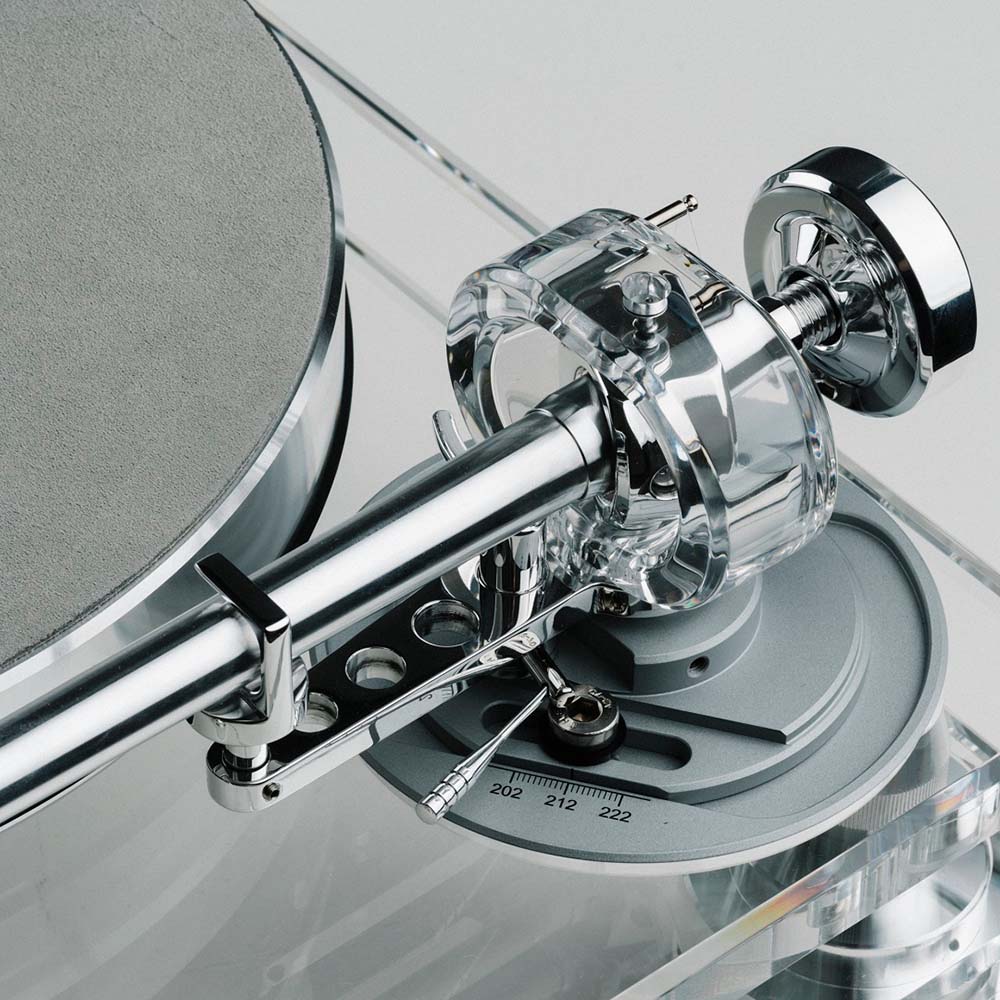

The 9-inch tonearm is the same design as in the M8xTT, but with a shorter tonearm tube, a streamlined headshell design and a direct 5P DIN output.
It incorporates an ultra-low resonance design with transparent acrylic bearing ring and conical aluminium tonearm tube. The tonearm is fully VTA and azimuth adjustable and comes with two counterweights, which are TPE damped to prevent resonances.
Motor & Platter

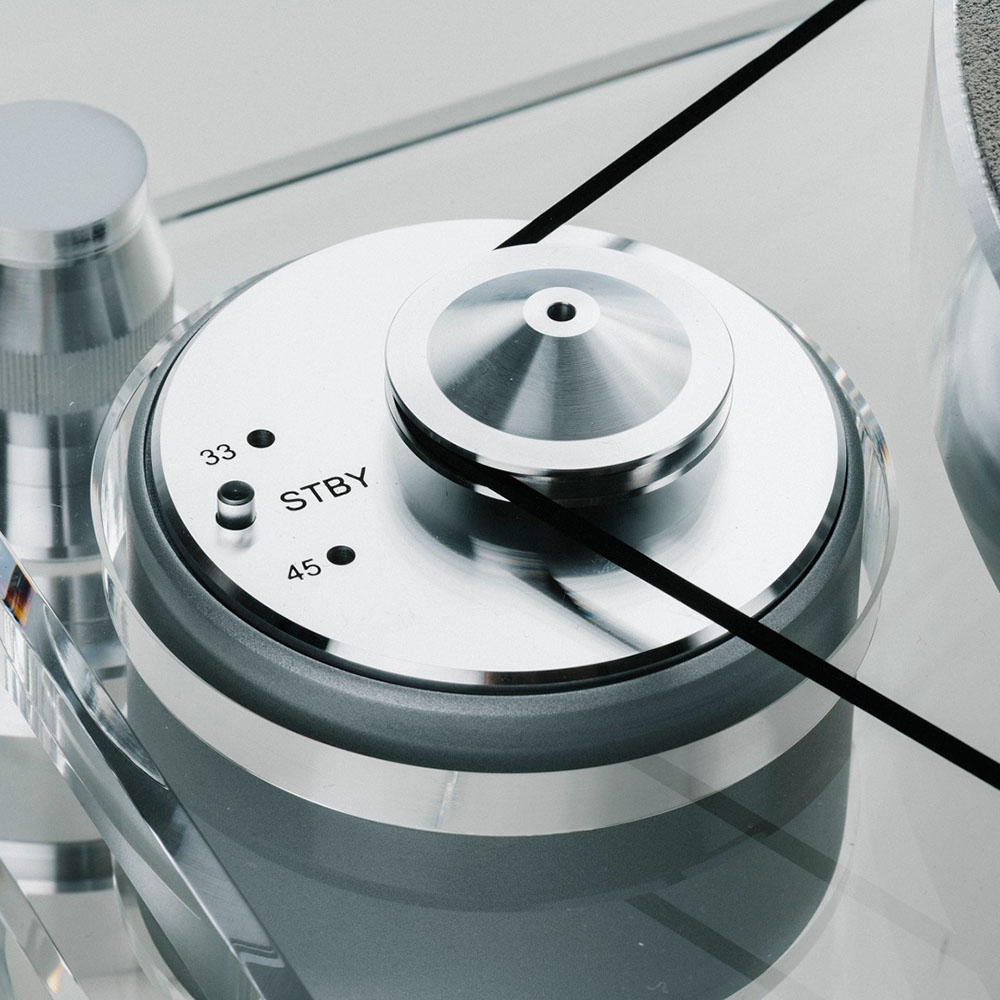

The motor is sitting in on a special foam in the lower level acrylic plinth to decouple it from the platter and the tonearm. The electronic speed control allows you to switch between 33 / 45 RPM.
Like the M8x TT, the M6x TT is equipped with the same sophisticated speed control technology. The motor is powered by a precision DC-driven AC generator for the utmost in precision of speed and stability.
This means the frequency and voltage for the motor are completely generated from scratch by the control electronics and you are not handicapped by the quality of your mains power when it comes to achieving perfect playback speeds.
A one-piece belt manufactured without any gluing connects the motor and the TPE damped platter, which is made of aluminium and weighs a hefty 6.6 kg.
Feet

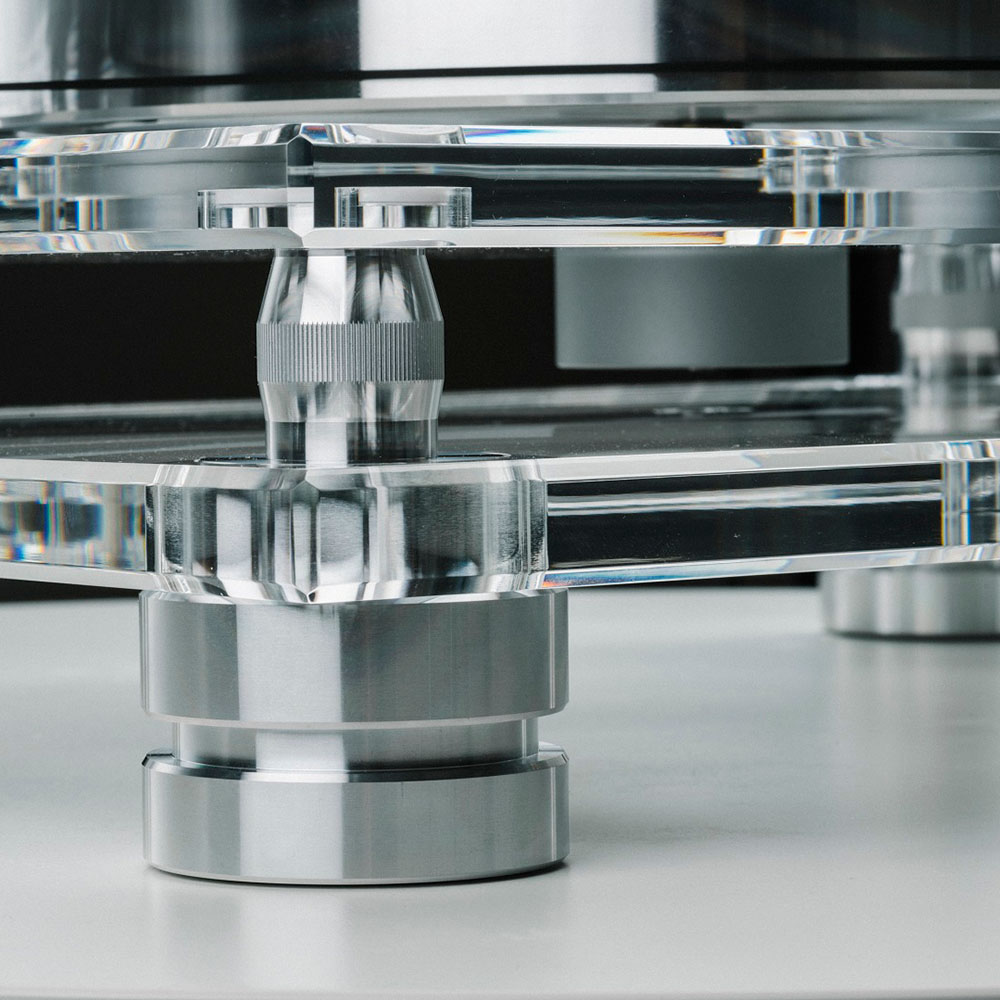

Four heavyweight TPE damped aluminium feet with magnetic support connect the two acrylic plinths with teflon spacers in between. You can adjust them in height by turning the riffled middle part of the feet to level the turntable.

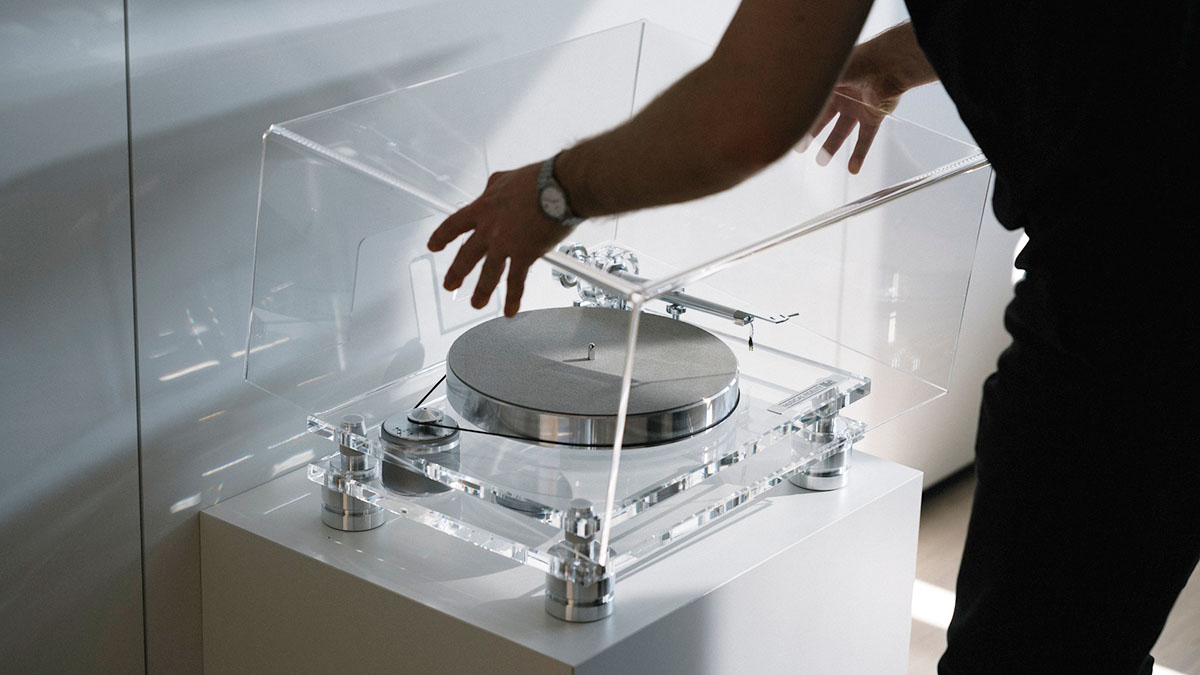

Dust Cover (Optional)
A matching dust cover is available separately to protect your M6x TT unit.

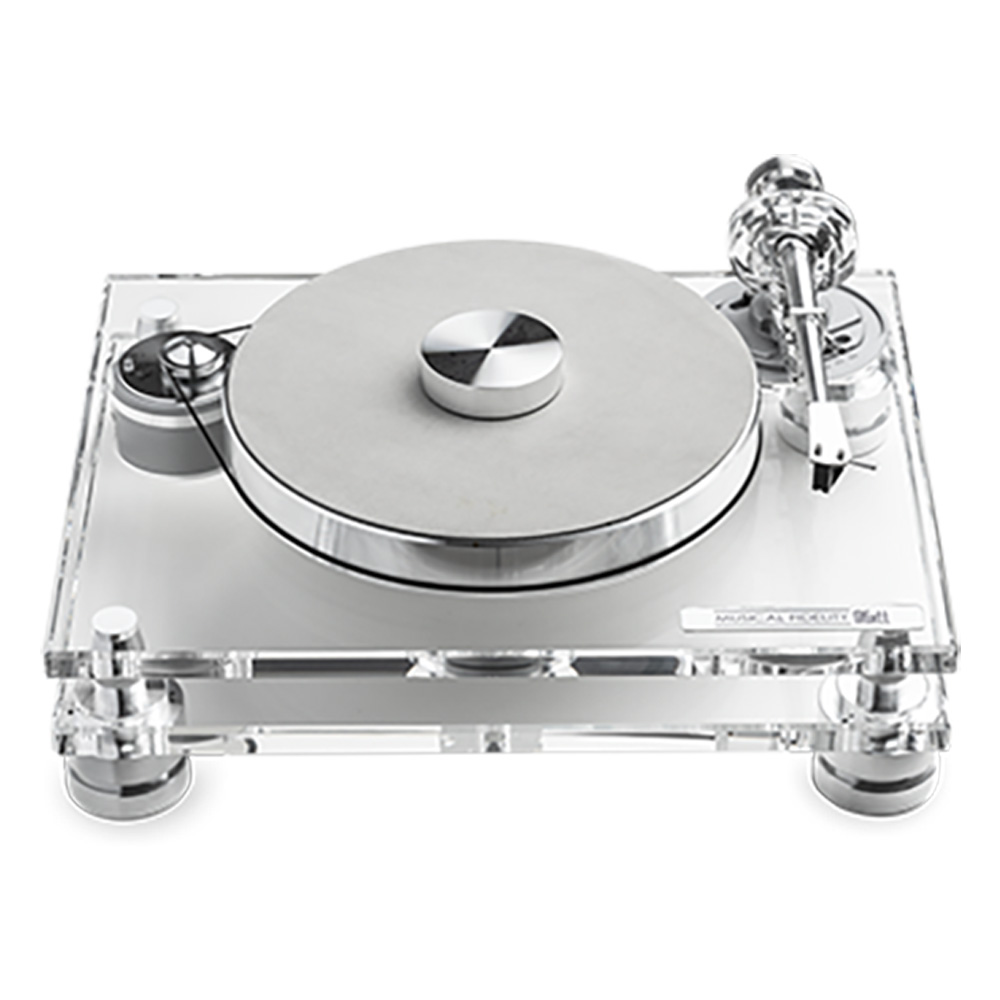

M6x TT Premium Turntable, in Clear Acrylic finish, by Musical Fidelity
Features
- Mass loaded belt drive design with electronic speed change 33/45 RPM
- Heavyweight 6.6 kg aluminium platter
- Record puck included
- Leather mat included
- Height adjustable magnetic feet
- 9-inch Musical Fidelity tonearm
- Azimuth and VTA fully adjustable
- Non-resonant acrylic plinths with effective decoupling
- 5P DIN tonearm output
- Handmade in Europe
Specifications
- Speed: 33 / 45 (electronic speed change)
- Drive principle: belt drive with electronic speed control
- Platter: 39 mm thick, 6.6 kg aluminium platter
- Platter bearing: Inverted bearing with ceramic ball tip
- Tonearm: 9-inch Musical Fidelity tonearm
- Effective tonearm mass/length: 13 g / 230 mm
- Overhang: 18 mm
- Wow & flutter: 33 rpm ±0.08% / 45 rpm ±0.07%
- Speed drift: ±0.11%, 45 rpm: ±0.11%
- Signal-to-noise: -75 dB
- Dimensions (W x H x D): 480 x 210 x 370 mm
- Weight: 19.1 kg
Included
- 1 x M6x TT
- 1 x Heavyweight Aluminium Record Puck
- 1 x Leather Turntable Mat
- 1 x RCA Interconnect Cable
