Description

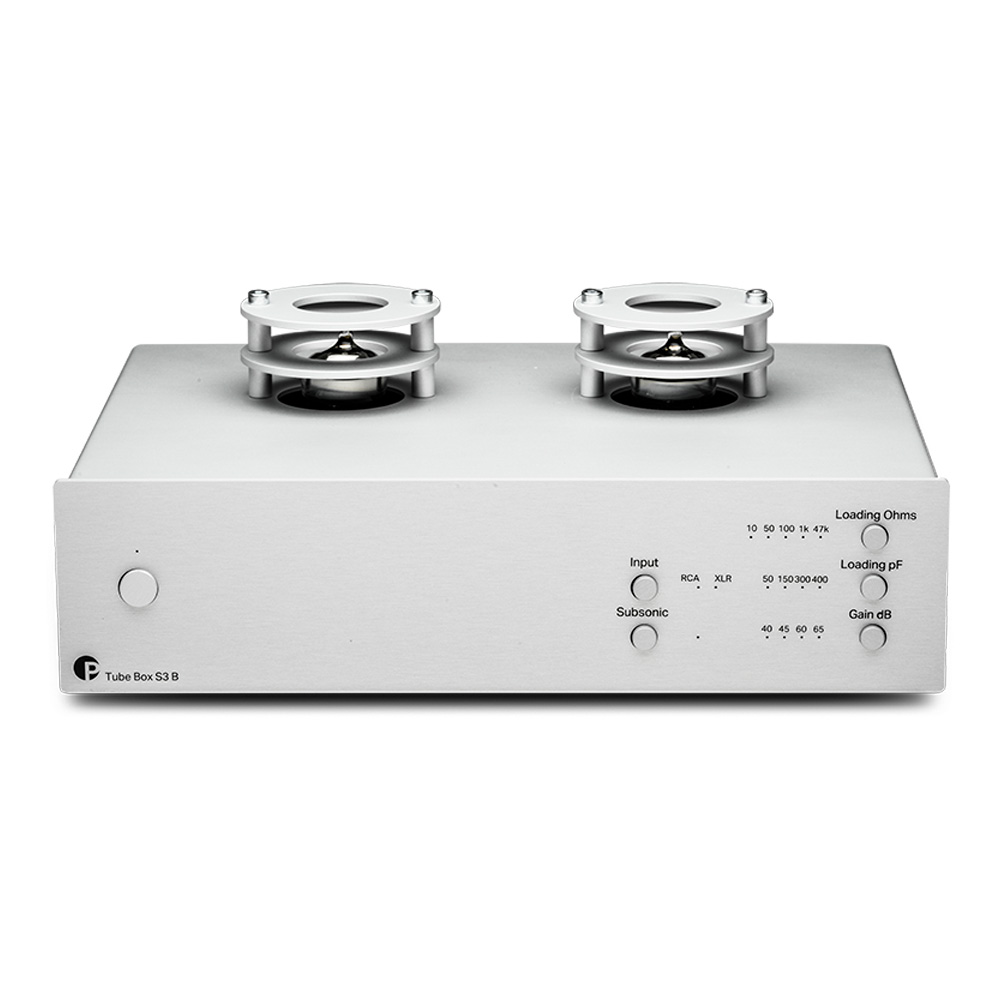

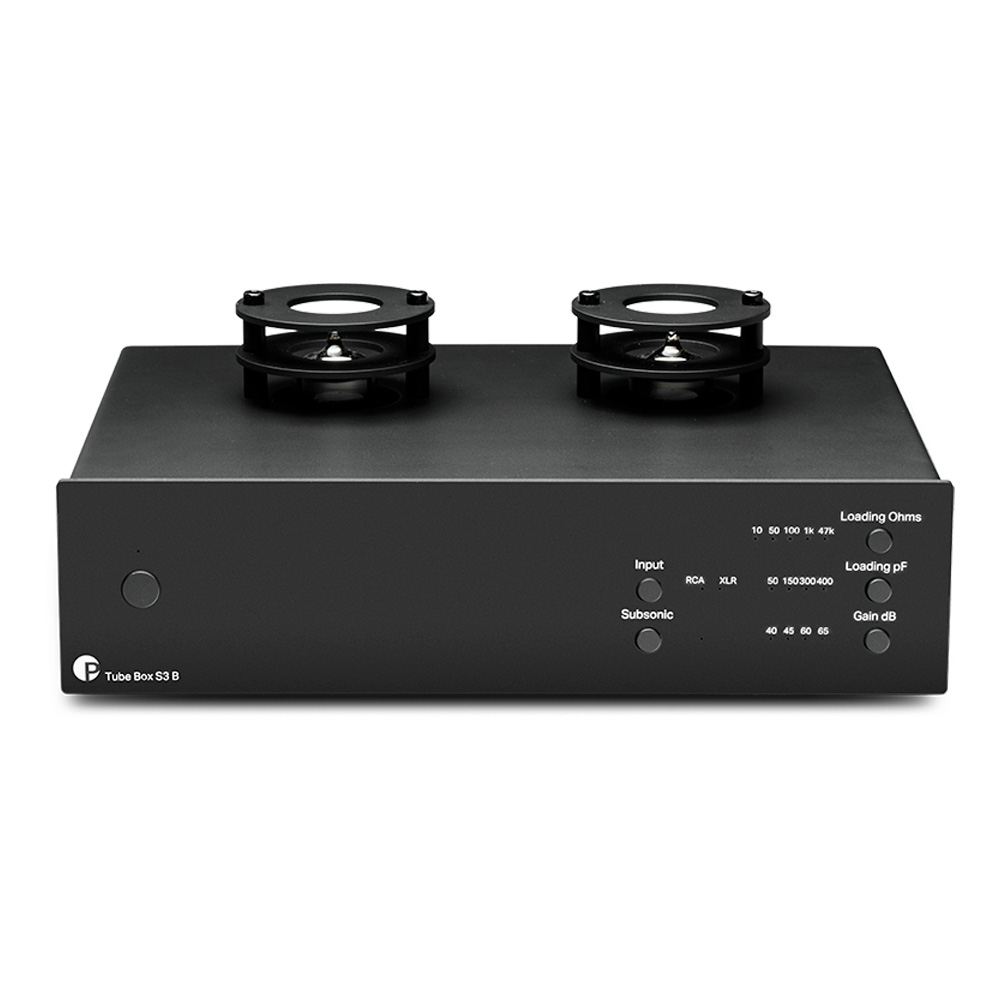

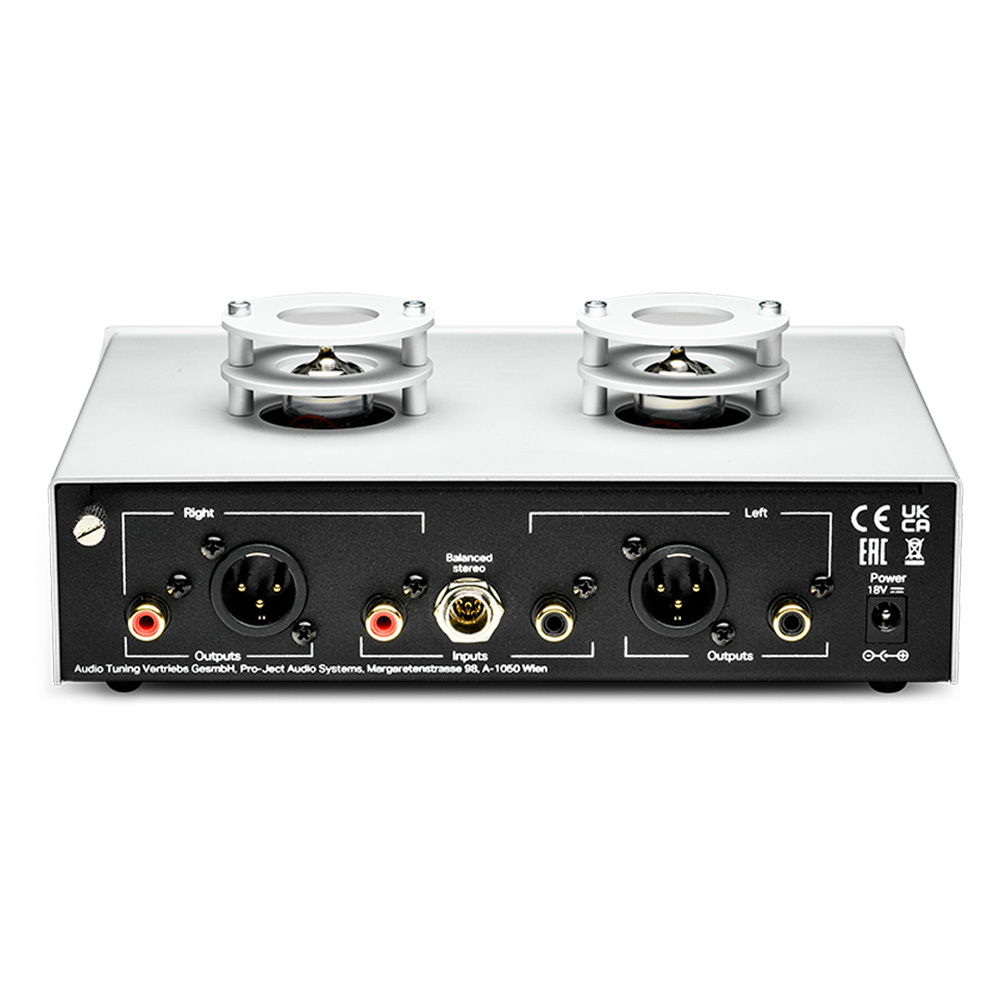

Tube Box S3 B
Crafted in Europe, the Tube Box S3 B by Pro-Ject Audio Systems features a robust aluminium chassis that protects against interference and vibration. Front-panel controls offer easy access to key settings, while dual turntable inputs add convenience for vinyl enthusiasts.
The sleek, compact form is available in silver or black, making it a stylish addition to any hi-fi system.
Balanced Signal Path
The "B" means Balanced – and that is where this phono stage shines. Using a symmetrical signal path via a 5-pin mini XLR input and balanced XLR outputs, it extracts musical detail while cancelling out noise.
This design ensures a purer, more dynamic sound, typically found in far more expensive equipment.
Flexible Cartridge Matching
With gain settings from 40 dB – 65 dB and ultra-low loading options like 50 pF and 10 Ohms, the Tube Box S3 B adapts to a wide range of MM and MC cartridges.
Each input stores its own settings, allowing seamless switching between turntables.
Whether you’re dealing with high-capacitance cables or fine-tuning your setup, this phono stage offers precision and ease.
Features
- NEW 5-pin mini XLR balanced input.
- NEW balanced XLR outputs.
- NEW fully symmetrical & discrete gain stage.
- NEW easy settings adjustment on the faceplate.
- 2 x ECC83 tubes (replaceable).
- MM / MC capable.
- Dual mono design.
- Semi-passive RIAA equalization.
- Superior low noise / low distortion.
- Aluminium casing protects against interference.
- Available in silver or black.
- Made in Europe.
Specifications
- Input Impedance (MM): 47 kΩ
- Input Impedance (MC): Variable 10 – 1,000 Ω
- Phono Stage Capacitance (MM): 50, 150, 300 or 400 pF
- Phono Stage Equalization Options: RIAA
- Subsonic Filter: at 20 Hz with 18 dB/octave
- RIAA Accuracy (20 Hz – 20 kHz): <0.4 dB
- Valves: 2 x ECC83
- THD (MM Input): <0.005 %
- THD (MC Input): <0.01 %
- Signal To Noise Ratio (MM Input): 40 dB
- Signal To Noise Ratio (MC Input): 60 dB
- RCA Input(s): 1 x Pair RCA Phono Sockets
- Balanced Mini-XLR Input: 1 x 5-pin Mini XLR
- Fixed Analogue Output(s): 1 x RCA Pair, 1 x XLR Pair
- External Power Supply Rating: 18 V – 1000 mA DC
- Maximum Power Consumption: <0.5 W
- Dimensions (W x H x D): 206 x 81 x 153 mm
- Additional Dimensions (W x H x D): 206 x 81 x 164 mm (with sockets)
- Weight: 10.1 kg (without PSU)
Included
- 1 x Tube Box S3 B
- 1 x External Power Supply
