Description
Elegan 2
Powerful yet composed, revealing yet remarkably easy to listen to, ELEGAN 2 delivers the scale and authority expected of a floorstanding loudspeaker without sacrificing the natural balance that has defined QUAD for generations.
ELEGAN 2 are engineered to reproduce music honestly, allowing every recording to breathe with space, realism and emotion.
3-Way Engineering
By dedicating individual drive units to bass, midrange and treble reproduction, ELEGAN 2 allows each component to perform within its optimum operating range.
Twin 165mm woven Kevlar bass drivers provide deep, controlled low-frequency extension with exceptional composure. The dual driver system allows bass extension down to 32Hz.
A dedicated 125mm woven Kevlar midrange driver, housed within its own isolated enclosure, reproduces vocals and instruments with outstanding clarity and tonal accuracy.
The result is effortless dynamics, improved separation and a presentation that remains composed even during complex musical passages.
Revealing By Design
Great loudspeakers never sound forced. Instead, ELEGAN 2 presents music with an effortless sense of scale. Bass is powerful without becoming dominant, the midrange remains open and expressive, while high frequencies retain their detail and refinement without harshness.
Stereo imaging extends well beyond the loudspeaker cabinets themselves, creating a broad and stable soundstage that invites the listener deeper into every recording.
Whether enjoying delicate acoustic performances or large-scale orchestral works, ELEGAN 2 maintains the coherence and musical integrity that define the QUAD listening experience.
Advanced Engineering
The ELEGAN 2’s acoustic performance is supported by carefully developed engineering throughout. The precision 25mm fabric dome tweeter is mounted within a profiled waveguide, optimising dispersion for consistent performance across a wide listening area.
A carefully engineered Linkwitz-Riley crossover network integrates each drive unit seamlessly, ensuring phase coherence and tonal consistency across the full frequency range.
Internally, the cabinet employs extensive bracing and resonance control to minimise unwanted vibration, while the QUAD Airflowâ„¢ bass reflex system reduces port turbulence to deliver cleaner, faster and more articulate bass reproduction.
Every engineering decision contributes towards a loudspeaker that behaves as one coherent acoustic system.

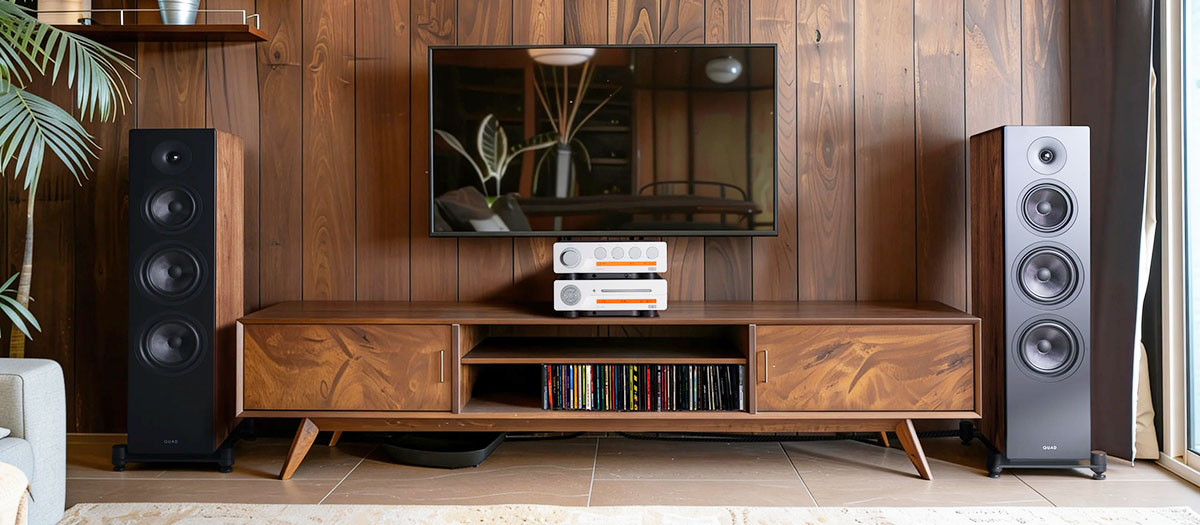

Elegan 2 Floorstanding Loudspeaker, in Walnut finish, by Quad Audio.
Features
- Effortless scale, natural authority.
- 3-way engineering for greater musical resolution.
- Large stereo imaging, with broad stable soundstage.
- Quad Airflow bass reflex system.
- Designed for contemporary living.
Specifications
- Model: ELEGAN 2
- General Description: 3-way floorstanding speaker
- Enclosure Type: Bass reflex
- Transducer Complement: 3-way
- Bass Driver: 165mm woven Kevlar cone ×2
- Midrange Driver: 125mm woven Kevlar cone
- Treble Driver: 1″ (25mm) soft dome
- Sensitivity (2.83V @ 1m): 90dB
- Recommended Amplifier Power: 30-200W
- Peak SPL: 106dB
- Nominal Impedance: 8Ω compatible
- Minimum Impedance: 3.0Ω
- Frequency Response (+/-3dB): 44Hz – 24kHz
- Bass Extension (-6dB): 32Hz
- Crossover Frequency: 480Hz & 2.7kHz
- Cabinet Volume: 14.5L (mid) / 31L (bass)
- Height (on plinth): 942mm
- Width: 220mm
- Depth (with terminals & grille): (340 + 33)mm
- Carton Size: 490 × 395 × 1065mm
- Net Weight: 28.4kg per speaker
- Gross Weight: 30.6kg per carton
- Finish Options: Real wood walnut veneer / Matte black
- Standard Accessories: Spike seat
Included
- Elegan 2 Loudspeakers
- Grilles
- Spike Seats
- Documentation
