Description
Talisman-R
In celebration of four decades of craft and expertise, Ruark is relaunching one of its best-known loudspeaker designs, the Talisman. The original Talisman arrived in 1990, and for many, this was the model that defined the company.
With its slim profile and sloped baffle, it stood out from the many rectangular loudspeakers available and gave Ruark Audio a reputation for designing products that look as good as they sound.
Ruark are delighted to be reintroducing a fourth generation of this innovative speaker in the form of Talisman-R. The connection between the original and the new is clear, but with years of accumulated knowledge, Talisman-R incorporates innovations that deliver another level of performance along with a refreshed design that fits perfectly with Ruark’s 100 Series aesthetic.
Drivers
As the original, Talisman-R is a two way, bass reflex design and retains Ruark’s preference for natural driver materials, featuring a 165mm long throw treated fibre NS+ woofer along with a 27mm silk dome tweeter.
The drivers are unified via a carefully optimised crossover, using premium audio-grade capacitors, resistors and low-loss inductors, for best signal transfer and reduced distortion. The result is speakers with seamless integration and a wide natural frequency range.
Enclosure
An area where Ruark have paid particular attention is in the development of the enclosure. Imagine that in a speaker, as much sound energy is fed back into the cabinet as is delivered out the front, so controlling and dissipating this energy is vital in creating quality sound.
The bolts that feature on the front baffle are a vital part of Talisman-R’s decoupled baffle design. These suspend the baffle on elastomer bushes and together with a dual damping strip, limit the vibration transfer from the drivers to the main enclosure. Internally the enclosure has a bracing system to control acoustic hotspots and is lined and damped with compound wadding.
This absorbs energy over a wider frequency range and effectively controls internal standing waves. The outcome is an enclosure that is ultra-low in colouration, resulting in a purer sound.
Plinth & Feet
The shape of Talisman-R makes it inherently stable, but to further aid stability the plinth of each is machined from 10 mm plate steel with threads for the supplied adjustable rubber feet and carpet spikes.
This added mass makes Talisman-R ultra stable and when viewed from the front gives the speakers a distinctive floating appearance.
In conclusion, Talisman-R is music for people who care about their home as much as their music. Who want speakers that blend into a room and fill it at the same time.

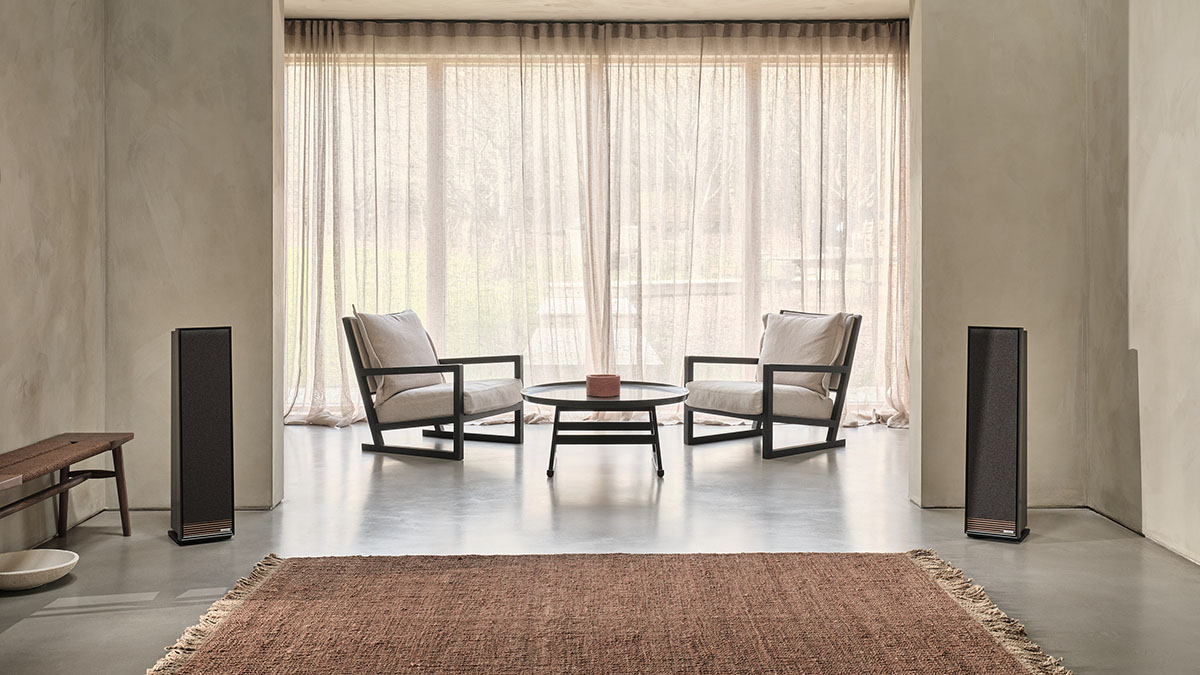

Talisman-R Floorstanding Loudspeakers, in Satin Charcoal finish, by Ruark Audio
Features
- Ruark Audio launches Talisman-R, celebrating 40 years making music
- Musicality and visual design key in Talisman-Rs development
- Two-way, bass-reflex system with optimised dual flared port
- New decoupled baffle controls and reduces colouration
Specifications
- Frequency Response: 35Hz – 22kHz (typical in-room)
- Tweeter: 27 mm Ruark silk-dome tweeter
- Woofer: 165 mm / 6.5-inch Ruark NS+ long throw woofer
- Cabinet: Bass-reflex with decoupled baffle & dual-flared port
- Cabinet volume: 14.5 litres
- Tuning frequency: 42 Hz
- Nominal impedance: 6 Ohms
- Crossover: Optimised 2nd order with gold-plated crossover board, premium audio grade capacitors, resistors and low-loss inductors
- Crossover frequency 2.2 kHz
- Sensitivity (2.83 V @ 1 m): 87 dB
- Amplifier requirements: 75-200 W
- Grille: Removable magnetic frame with acoustically transparent fabric
- Finishes: Fused Walnut veneer or Satin Charcoal lacquer
- Product Dimensions: H850 x W210 x D250 mm each
- Product Weight: 17.6 kg each
Included
- 2 x Talisman-R Speakers
- 2 x Magnetic Grilles
- 1 x Documentation
Full Ruark Audio Range Available
Unilet Sound & Vision are official retail partners for Ruark Audio, providing sales, advice and assistance on their entire range of high-quality products. Please do get in touch if you would like a demonstration or wish to purchase.
