Description
Planar PL-2
REL performance in an ultra-thin form.
Traditional subwoofers often demand significant floor space to produce deep, powerful bass. PL-2 takes a different approach. By working in close relationship with the wall behind it, Planar uses boundary effect coupling to make the wall part of the acoustic system projecting bass into the room with scale, depth, and authority that feels far larger than the product itself.
Whether mounted directly on-wall or placed close to the wall using the optional Cart, PL-2 delivers powerful, immersive performance for modern rooms and open living spaces where traditional subwoofers struggle to integrate gracefully.
Designed For Modern Living
PL-2 was designed to deliver full REL performance from an ultra-thin form that integrates naturally into modern spaces. Its slim proportions, flowing edges, and deep lacquer finishes allow it to occupy spaces where traditional subwoofers often feel intrusive while still delivering serious performance.
Available in Gloss Piano Black or Gloss White Lacquer, PL-2 can either blend into the room or stand within it more intentionally. From recessed controls to concealed cable management and optional wood grille upgrades, every detail supports a design that feels considered, not imposed.
To help manage the interaction between the cabinet and the wall, Planar incorporates REL’s VIMAR (Vibration Isolation Material and Resonance Control) system. Integrated into the mounting brackets, VIMAR reduces the transfer of unwanted energy into the wall while preserving the speed and integrity of the bass. The result is cleaner, more controlled low-frequency performance.
Flat Piston: Massive Scale
PL-2’s 8” flat piston driver was developed specifically for Planar engineered to deliver remarkable output from an ultra-thin cabinet. Producing deep, powerful bass from a driver of this depth required a different approach to rigidity, excursion, and control.
The result is fast, dynamic bass that extends to 24Hz reaching well below the fundamental range of many acoustic instruments while delivering the scale and authority expected from far larger subwoofers.
Boundary Coupled Bass
A specially tuned 10” long-stroke passive radiator fires toward the wall behind Planar, using boundary effect coupling to reinforce and expand low-frequency output.
Working in close relationship with the wall, PL-2 transforms it into part of the acoustic system producing bass that feels expansive, immersive, and far larger than the cabinet itself suggests.

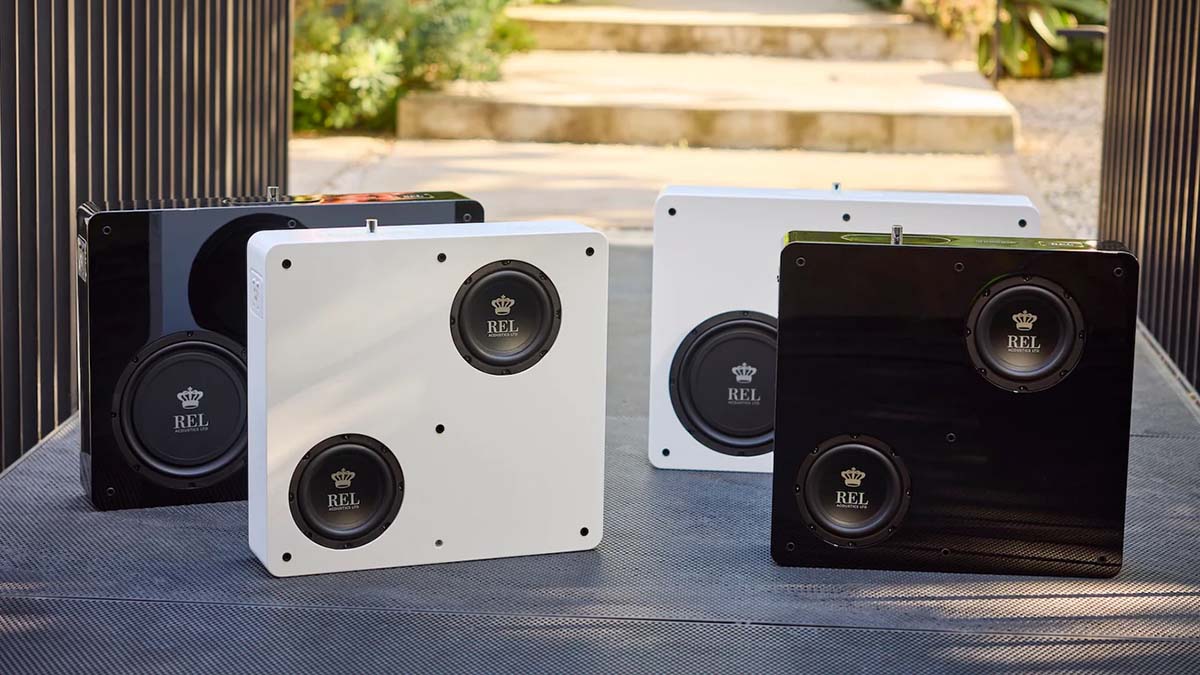

Planar Subwoofers PL-1 & PL-2, in Gloss White & Piano Black finish, by REL Acoustics.
Features
- 500-Watt Pure Class D Amplifier
- 8” Flat Piston Driver
- 10” Boundary-Coupled Passive Radiator
- Ultra-Thin Cabinet for Near-Wall or On-Wall Placement
- Built-In Airship Direct Wireless
- Optional Cart for Flexible Placement
Specifications
- Type: (1) Front-firing active woofers, (1) Rear-firing passive radiator
- Active Driver Size & Material: (1) 8in. (205mm) FlatPiston active, long-throw, steel chassis
- Passive Radiator Size & Material: 10in. (250mm) FibreAlloy cone, steel chassis
- Low Frequency Extension: -6 dB at 24 Hz, in room
- Input Connectors: HIGH-LEVEL Neutrik SpeakOn, LOW-LEVEL RCA, LFE RCA
- Power Output: 550 watts (RMS)
- Amplifier Type: Pure Class D
- Wireless Capability: Built-in Wireless
- Dual Parametric Filter: N/A
- Finish: Gloss Piano Black or Gloss White Lacquer
Protection System
- Fully Electronic Set Safe: Yes
- D.C. Fault: Yes
- Output Short: Yes
- Mains Input Voltage: 100-240 volts selectable
- Fuses: 4A for 230V operation, 8A for 120V operation
Included
- Planar PL-2 Subwoofer
- Cloth Grille
- Airship Direct Wireless System (with receiver unit pre-installed on subwoofer)
- Right-Angle Power Cord & Control Panel Cover
- Wall Mounting Template, Brackets, and hardware to mount planar to the wall
- User Manual and Warranty Information
