Amp Ultra

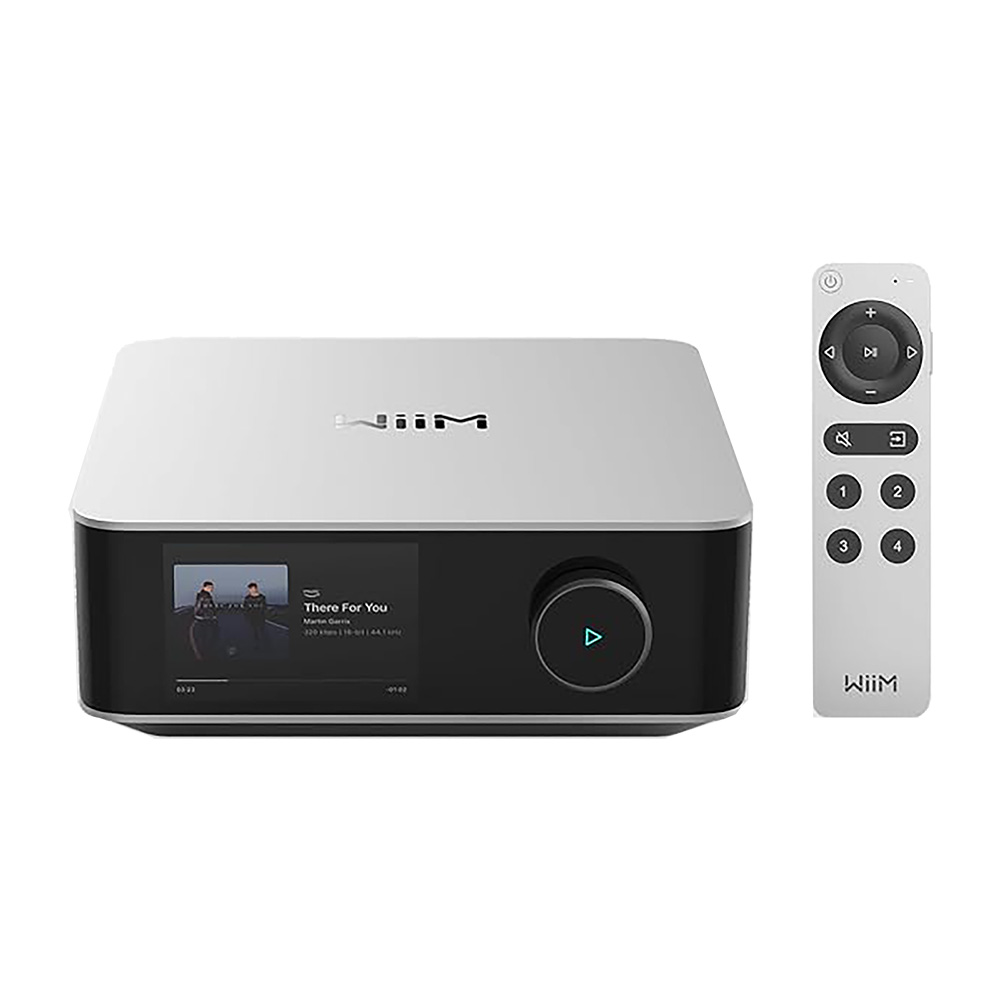

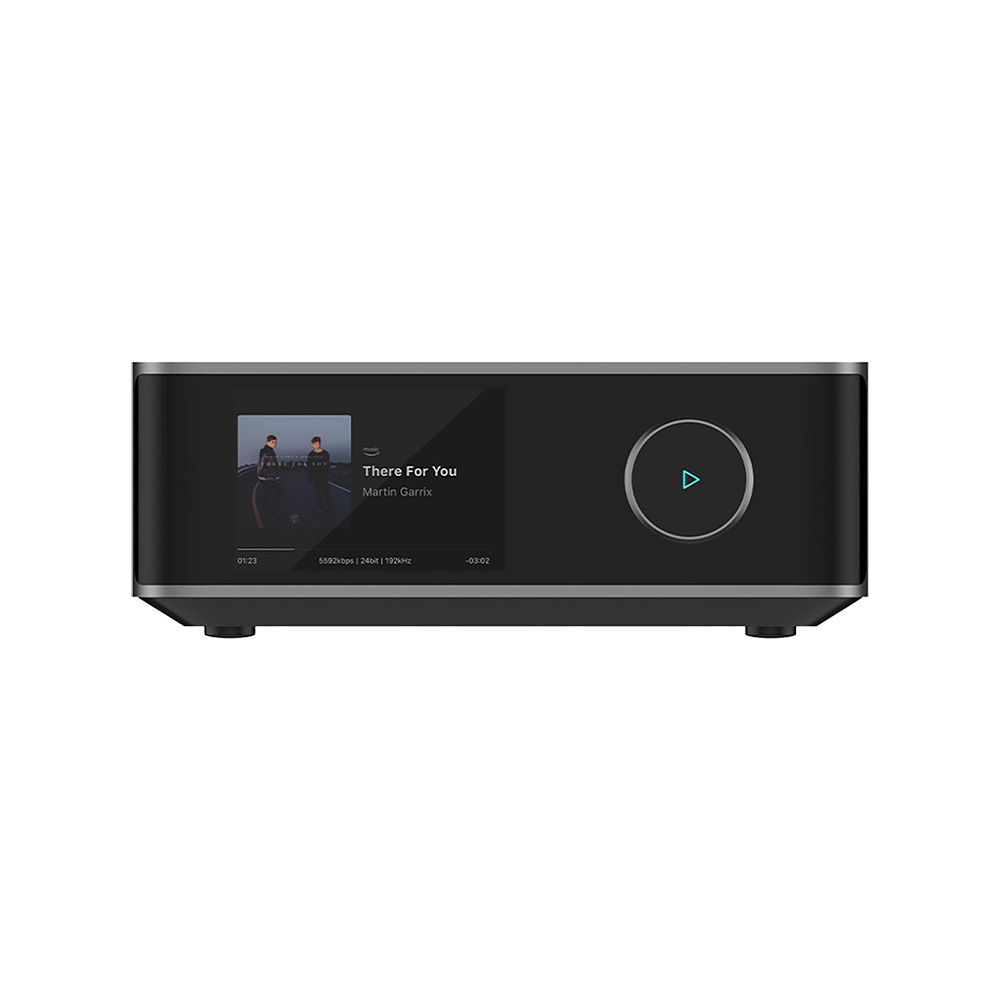

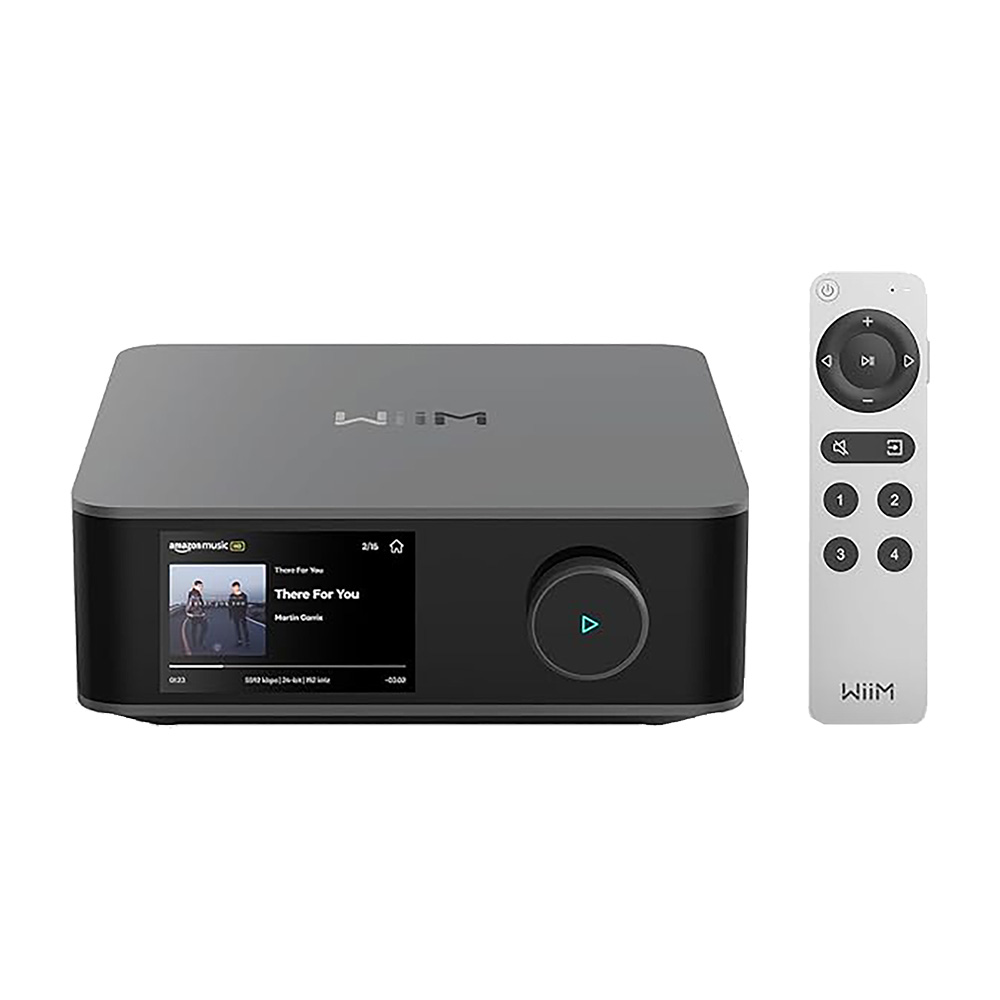

Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminium chassis and a vibrant 3.5-inch glass-covered touchscreen. Easily control playback, switch sources, view album art, and more—all at your fingertips.
Whether you play vinyl, Spotify, or cinematic surround sound — you will hear it like never before.
At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads.
Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature.
The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Features
- Powerful Amplification – Delivers 100W per channel at 8Ω or 200W at 4Ω—easily drives up to four passive speakers with stunning clarity and dynamics.
- Audiophile-Grade Components – Features the 32-bit/384kHz ESS ES9039Q2M SABRE DAC, dual TI TPA3255 Class-D amp chips, and six TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
- Post Filter Feedback (PFFB) Technology – Ensures stable, load-independent performance across all speaker types, delivering cleaner sound and improved amplifier control, especially with complex loads.
- Next-Gen Connectivity – Equipped with Wi-Fi 6E, Bluetooth 5.3 with LE Audio, and dual antennas for fast, stable streaming across all wireless protocols.
- Elegant Touchscreen Design – Housed in a premium unibody aluminium chassis with a vibrant 3.5” glass-covered touchscreen for intuitive control and stunning aesthetics.
- Room Calibration Built-In – Advanced room correction technology analyses your space and customizes output for speakers and subwoofer, optimizing soundstage and tonal balance.
- Exceptional Sound Performance – Achieves -105 dB THD+N and 120 dB SNR at 5W—ideal for high-fidelity playback across any genre or setup.
- All-in-One Streaming Hub – Stream music, podcasts, audiobooks, and internet radio in Hi-Res up to 24-bit / 192 kHz directly to your speaker system.
- Universal Music Service Support – Seamless access to Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, and more via the WiiM Home App.
- Cast with Ease – Supports Google Cast, Alexa Cast, DLNA, Spotify Connect, TIDAL Connect, DLNA, and Roon for effortless playback from your favourite apps.
- Flexible Input Options – Connect turntables, TVs, or other sources and broadcast audio wirelessly across your multi-room system.
- Cinematic TV Audio – HDMI ARC, Dolby Digital decoding, and dedicated subwoofer output bring immersive home cinema sound to your living room.
- Smart Voice Control – Works with Alexa, Google Assistant, and the WiiM Voice Remote for hands-free playback and system control.
- Customizable EQ – Fine-tune your audio with parametric and graphic EQs tailored to your own preference.
- Future-Proof Experience – Receive ongoing firmware updates with new features, services, and performance enhancements.
Specifications
- Network Connectivity: Wi-Fi + Ethernet
- Amplifier Class: D
- Power Output (4 Ohms): 200 W
- Power Output (8 Ohms): 100 W
- Frequency Response: 20 Hz – 20 kHz
- Channel Separation: 2
- Damping Factor: 94
- Signal To Noise Ratio: 120 dB
- THD: 0.08 %
- THD +N: 0.005 %
- Output Impedance: 2–8 Ohms
- RCA Input(s): 1
- Bluetooth Input: Yes
- Bluetooth Version: 5.3
- HDMI Input(s): ARC Input
- Optical Input(s): 1 (24-bit, 192kHz)
- DAC Chip: Sabre ES9039Q2M
- Digital Output(s): USB
- Subwoofer Output(s): RCA Mono
- Enclosure Material: Aluminium
- Dimensions (W x H x D): 200 x 211 x 76.2 mm
- Weight: 2.45 kg
Included
- 1 x WiiM Amp Ultra
- 1 x WiiM Remote 2
- 4 x Banana Plugs
- 1 x Power Cable
- 1 x RCA Cable
- 1 x Optical Cable
- 1 x HDMI Cable
- 1 x User Guide
