Description
Platina CDT
Bold in proportion yet restrained in expression, the Quad Platina CDT reflects a design language characterised by balance, symmetry, and control. As with the entire Platina series, the CDT embodies purposeful restraint: clean geometry, refined materials, and an unmistakable Quad presence.
From its tactile machined aluminium controls to the minimalist fascia and disciplined rear panel, this is digital audio crafted with elegant precision.
It is a dedicated CD transport, developed without onboard DAC circuitry, allowing it to focus entirely on the accurate retrieval and transmission of digital audio data. When partnered with the Platina Integrated amplifier or an external high-performance DAC, the CDT delivers playback with precision, stability and composure.
With the addition of USB HDD playback, the Platina CDT extends beyond compact disc media, offering a flexible digital source for contemporary listening.
Engineering Precision
At the heart of the Platina CDT is a custom-developed transport mechanism, engineered for smooth operation, stable tracking and consistent error correction.
A temperature-compensated crystal oscillator (TCXO) governs the system clock. Unlike conventional oscillators, which can drift with temperature changes, the TCXO maintains timing accuracy through continuous compensation, ensuring a stable, consistent digital signal.
This is no technical footnote: traditional crystal oscillators drift as they warm up, causing subtle frequency shifts and timing errors. These changes degrade the precision of digital signal output and affect musical perception. The TCXO in the Platina CDT actively monitors and compensates for temperature changes in real time, preserving a rock-solid digital clock.
Beyond CD
The Platina CDT also supports USB HDD playback, allowing it to operate as a broader digital transport within the system.
Audio files stored on USB devices can be accessed and replayed through the CDT’s digital output stage, with support for a wide range of formats including FLAC, WAV, MP3, AAC, WMA and APE.
Whether replaying optical media or digital files, all sources benefit from the same disciplined clocking and power architecture.
System Integration
Platina CDT is designed as part of a complete system. Together with the Platina Integrated and Platina Stream, it creates a unified platform for contemporary high-fidelity playback — integrating physical media, streaming, and amplification within a consistent architectural and sonic framework.
Each component is developed with the same intent: to deliver music with accuracy, balance and a sense of natural ease.

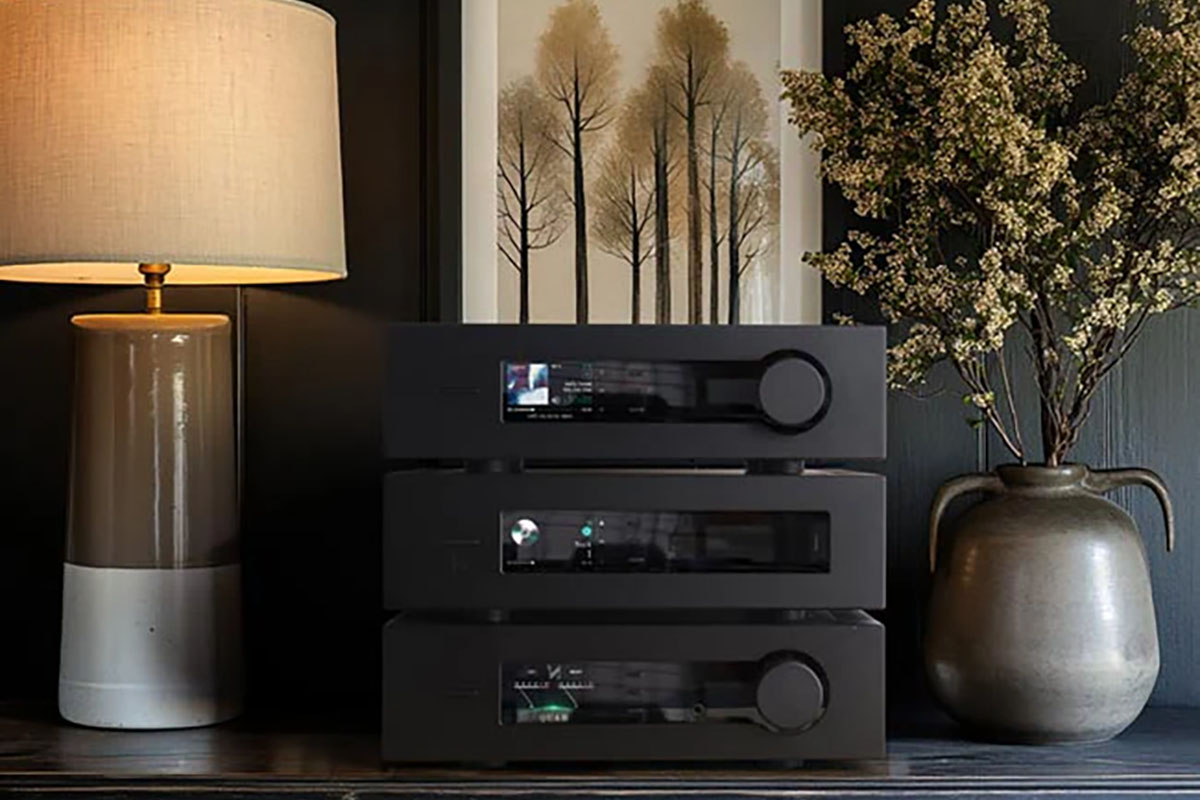

Quad Platina Series, including Platina Integrated, Platina Stream, and Platina CDT, all in Black finish.
Features
- Compatible with CD/CD-R/CD-RW and data CD formats
- CD Text display
- Gapless Playback
- Playback from USB HDD devices
- 4.3-inch 800 x 480 Large Size Full View IPS LCD
- Fully functional remote control
Specifications
- Model: Platina CDT
- General Description: CD transport
- Supported File Formats: WAV, MP3, WMA, AAC, FLAC, APE format playback
- USB Storage Device File System: Supports FAT16/FAT32/exFAT format
- Digital Outputs: 1 x Coaxial, 1 x Optical
- Digital Output Amplitude: 500 ±50mVpp
- Output Impedance: 75 Ω
- Frequency Response: -0.01 dB (20Hz–20kHz, ref.1 kHz)
- Sampling Rates
- 44.1 kHz (CD/CD-R/CD-RW)
- 44.1kHz–96kHz (Data CD)
- 44.1kHz–96kHz (USB HDD)
- Power
- Consumption: <0.5W
- Requirements: 220–240V ~ 50/60Hz / 100–120V ~ 50/60Hz
- General
- Product Size W x H x D: 445 x 135 x 310 mm
- Carton Size W x H x D: 500 x 225 x 445 mm
- Net Weight: 10.9kg
- Gross Weight: 12.8kg
- Finish: Black/Silver
Included
- Power Cord
- Remote Control
