Description
M5xi
Building on the outstanding success of its predecessor, the M5si, the M5xi is a major reinvention of the M5 formula.
The preamp, power amp, digital and phono sections are completely new and now much closer to the legendary Musical Fidelity TITAN power amp topology. In fact, the M5xi now commands the same topology as previously used in the M6si, including all the improvements for the newly released M6xi update, just tuned for less power output.
This makes the TITAN formula accessible at a new price-point as Musical Fidelity pushes to make true high-end amplifiers as affordable as never before.
Enhanced Connectivity
Modern systems demand modern connectivity. The M5xi now features HDMI eARC, allowing effortless integration with TVs and home theatre systems while delivering true high-end stereo performance. Alongside this, new coaxial and optical digital inputs expand connectivity for a wide range of digital sources, complementing the already established high-resolution USB input.
A completely new feature is the high-quality isolated USB power output. Designed as a dedicated, ultra-clean power supply, it allows you to power modern USB streamers directly from the amplifier. The result is simple system integration and a noticeable upgrade in performance for your favourite streaming source.
For professional installations and advanced system control, the M5xi now includes RS232 integration, making it ideal for custom installations and sophisticated home audio systems.
Affordable High-End
The new Musical Fidelity M5xi represents the next evolution of high-end integrated amplification with advanced engineering drawn directly from the MF flagship designs. Built to deliver uncompromising sonic performance, the M5xi merges sophisticated circuitry and meticulous PCB layout with modern connectivity in a design that sets new standards for its class.
The M5xi is tuned for less power output than the M6xi, making it a better candidate for smaller rooms or shorter listening distances. However, you will struggle to find loudspeakers that the M5xi cannot properly and fully drive as the M5xi now commands the same power amplifier topology as the M6si and M6xi.

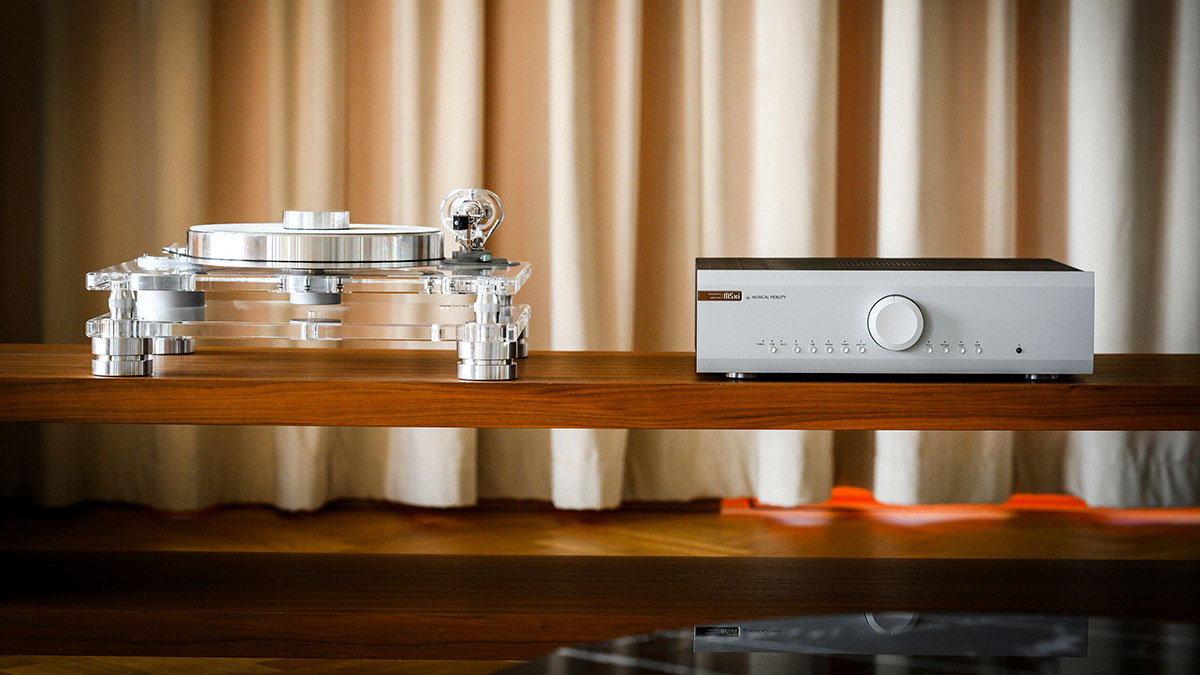

M5xi Integrated Amplifier, in Silver finish, by Musical Fidelity
Features
- Amplifier
- High-end circuitry from the high-end TITAN amplifier
- NEW Entirely revised amplifier topology brings the M5xi even closer to the TITAN design than before
- NEW Low distortion darlington output stage arranged in classic MF configuration for no crossover artefacts and little residual distortion
- NEW PCB layout to reduce imbalances that would otherwise need correcting by feedback
- NEW Power supplies are all analogue during operation to reduce high frequency noise and EMC issues
- Drives power hungry speakers with ease and gracefully manages low impedance dips
- NEW 160W per channel into 8 Ohms; 240W into 4 ohms
- Extreme power reserves for proper peak power delivery and wide dynamic range
- HT-input: bypassed preamp-stage allows connecting home theatre processors to use your M-Line as ultimate L/R channel amp
- NEW optical, coaxial & HDMI inputs
- NEW USB C input with 24/192 max. resolution
- NEW RS232 for custom integration
- NEW Isolated linear 5V/2A USB A power output to power modern external streamers
- NEW Standby (ON/OFF) & Mute function via remote
- Preamplifier
- NEW Low noise design for best THD and signal integrity at low as well as high levels
- NEW High quality Burr-Brown stepped attenuator for better channel matching than conventional potentiometer designs
- Pre Out for bi-amping or active subwoofer connection
- NEW USB input with meticulously careful digital circuitry layout to minimize HF interference
- NEW Phono input for turntables with MM and MC cartridges
- Mechanical
- Uncompromising metal work in typical Musical Fidelity tradition
- Heavy front panel milled from extruded aluminium profile
- Metal case protects against electromagnetic interference
Specifications
- Output
- Continuous Power, both channels driven @ 1% THD, 1kHz:
- 160W per channel into 8 Ohms;
- 240W per channel into 4 ohms
- Continuous Power, both channels driven @ 0.09% THD, 20Hz to 20 kHz:
- 140W per channel into 8 Ohms;
- 210W per channel into 4 ohms
- Peak Power, both channels driven @ 1% THD, 1kHz:
- 190W per channel into 8 Ohms;
- 320W per channel into 4 ohms
- 36 Volts RMS, 20Hz to 20 kHz; onset of clipping
- 101 Volts peak to peak
- Current 45 Amps peak to peak
- Damping factor 47 (8 Ohms)
- Output devices 2 pairs per channel
- Line Input
- THD+N < 0.009 % typical, 20Hz to 20 kHz
- Signal / noise ratio > 105dB ‘A’-weighted
- Input impedance 40 k Ohms
- Frequency response +0, –0.1dB, 10Hz to 20 kHz
- Connections
- 4x Line level RCA inputs
- 1x HDMI input
- 1x Coaxial input
- 1x Optical input
- 1x Phono MM/MC input
- 1x USB type ‘C’ connector – up to 24-bit/192kHz
- Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
- 1 pair line level RCA connectors, preamp outputs
- Speaker out: 2 pairs 4mm banana plug
- 1x USB A 5V/2A power output
- 1x RS232 D-sub connector
- Trigger In & Out
- Phono Input
- Sensitivity (nominal): 3mV MM / 0.4mV MC (for 300mV nominal)
- Gain MM/MC: 40dB / 60dB
- Signal / noise ratio: >87dB ‘A’-weighted
- Input capacitance: 220pF
- Input impedance: 50k Ohms MM / 1k Ohm MC
- Frequency response: RIAA/IEC ±0.4dB, 20Hz – 20 kHz
- Power
- Mains 115/230VAC 50/60Hz (factory pre-set)
- 100VAC 50/60Hz (alternative)
- Consumption 320 Watts maximum
- General
- Dimensions – WxHxD (mm): 440 x 125 x 405
- Weight (unpacked / packed): 15 kg/ 18.5 kg
Included
- M5xi Integrated Amplifier
- Remote Control
- Power Cord
- Documentation
